Front Sub Sensor Harness: Removal

WARNING: This page is about a different car, the 2006 Subaru Baja. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn ignition switch OFF.
  2. Disconnect the ground cable from the battery, and wait for at least 20 seconds before starting work.
  3. Remove instrument panel. < Ref. to REMOVAL , INSTRUMENT PANEL ASSEMBLY. >
  4. Disconnect front sub sensor connector (blue) from airbag main harness.

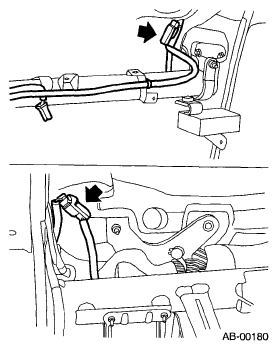

    Fig 1: Identifying Front Sub Sensor Connector (Blue)
    G04991324Courtesy of SUBARU OF AMERICA, INC.
  5. Remove front bumper. < Ref. to REMOVAL , FRONT BUMPER. >
  6. Disconnect connector from front sub sensor.
    Fig 2: Identifying Front Sub Sensor Connector
    G04991331Courtesy of SUBARU OF AMERICA, INC.
  7. Remove wiring harness clips.
  8. Remove grommet, and then detach front sub sensor harness (A).
    Fig 3: Identifying Front Sub Sensor Harness
    G04991335Courtesy of SUBARU OF AMERICA, INC.
