Section 10 (Automatic Transmission 4AT)
›
General Description
›
Components With Torque Specifications
›
Torque Converter And Case
Torque Converter And Case
WARNING:
This page is about a different variant/trim than selected.

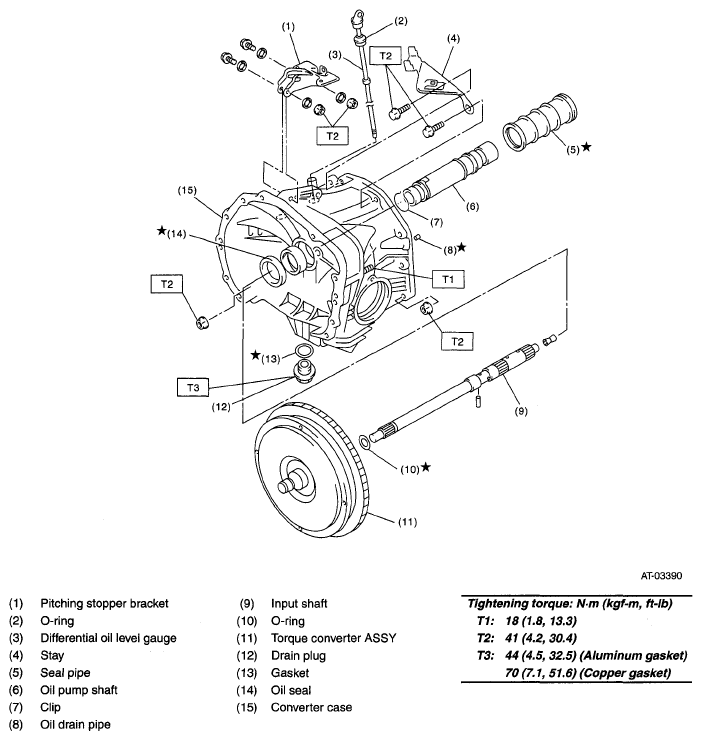

Fig 1: Exploded View Of Torque Converter And Case Components With Torque Specifications
Courtesy of SUBARU OF AMERICA, INC.
