Section 12 (Cooling System (H4SO))
›
General Description
›
Components With Torque Specifications
›
Water Pump
Water Pump
WARNING:
This page is about a different variant/trim than selected.

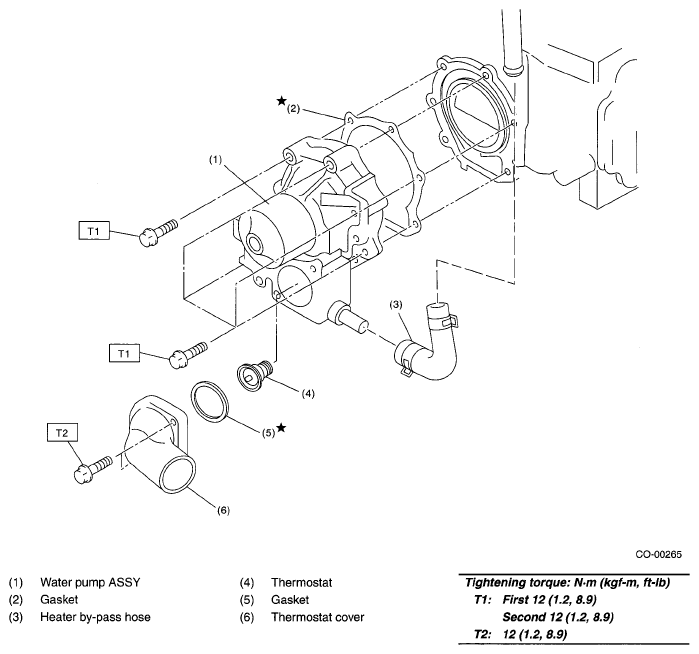

Fig 1: Water Pump Components With Torque Specifications
