Rack Housing Assembly

Disconnect the four pipes from gearbox.
NOTE: Remove the pipes C and D, which are fixed to clamp plate, as a single unit.
Secure the gearbox removed from vehicle in vice using ST.
ST1 926200000 STAND

ST2 34199AG000 BOSS D

CAUTION: Secure the gearbox in a vise using ST as shown in Fig 1. Do not attempt to secure it without this ST.

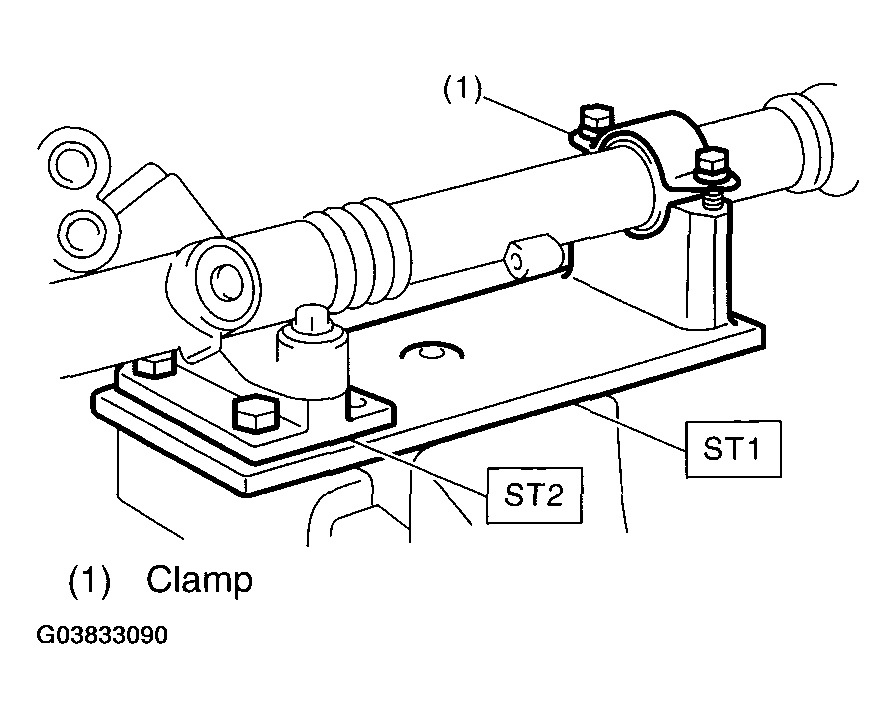

Fig 1: Securing Gearbox in Vise Using ST
Courtesy of SUBARU OF AMERICA, INC.
Remove the tie-rod end and lock nut from gearbox.
Remove the small clip from the boot using pliers, and then move the boot to tie-rod end side.

Fig 2: Removing Small Clip From Boot Using Pliers
Courtesy of SUBARU OF AMERICA, INC.
Using a flat-tip screwdriver, remove the band from boot.
NOTE: Replace the boot it there is damage, cracks or deterioration.

Fig 3: Removing Band From Boot
Courtesy of SUBARU OF AMERICA, INC.
Using the ST, loosen the lock nut.
ST 926230000 SPANNER

Fig 4: Loosening Lock Nut
Courtesy of SUBARU OF AMERICA, INC.
Tighten the adjusting screw until it no longer tightens.

Fig 5: Tightening Adjusting Screw
Courtesy of SUBARU OF AMERICA, INC.
Hold the rack with a wrench [22 mm width across flats], and then remove the tie-rod using a wrench [32 mm width across flats] or adjustable wrench.

Fig 6: Removing Tie-Rod Using Wrench
Courtesy of SUBARU OF AMERICA, INC.
Loosen the adjusting screw, and then remove the spring and sleeve.
Remove the two bolts securing valve assembly.

Fig 7: Removing Spring And Sleeve
Courtesy of SUBARU OF AMERICA, INC.
Carefully draw out the input shaft, and then remove the valve assembly.

Fig 8: Removing Valve Assembly
Courtesy of SUBARU OF AMERICA, INC.
Using a drill, release the caulking of holder.
CAUTION: Make a hole approx. 2 mm (0.08 in) depth using a drill bit of 3 mm (0.12 in) diameter.

Fig 9: Releasing Caulking Of Holder
Courtesy of SUBARU OF AMERICA, INC.
Using a spanner [36 mm width across flats] or adjustable wrench, remove the holder.

Fig 10: Removing Holder
Courtesy of SUBARU OF AMERICA, INC.
Remove the rack bushing and rack stopper from rack assembly.
Remove the oil seal from rack.
Insert the ST from pinion housing side, and then remove the oil seal using a press.
ST 34199AE050 OIL SEAL REMOVER

Fig 11: Removing Oil Seal From Rack
Courtesy of SUBARU OF AMERICA, INC.
Using a press, remove the bushing at gearbox installation portion.

Fig 12: Removing Bushing At Gearbox Installation Portion

Courtesy of SUBARU OF AMERICA, INC.
