Inspection

Place the front wheel on turning radius gauge. Make sure the ground contacting surfaces of front and rear wheels are set at the same height.
Set the ST into the center of wheel, and then set the wheel alignment gauge.
ST 927380002 ADAPTER

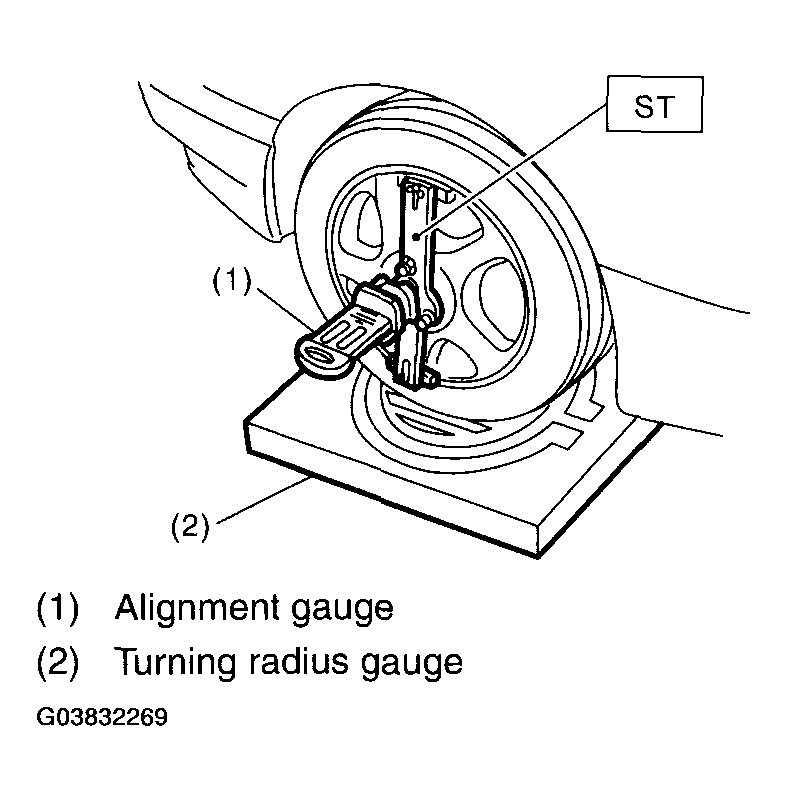

Fig 1: Identifying Alignment Gauge
Courtesy of SUBARU OF AMERICA, INC.
Measure the camber angle in accordance with the operation manual for wheel alignment gauge.

CAMBER SPECIFICATION

Model	Camber (Differences between RH and LH: 45' or less)
2.5 i, 2.5 GT	-0°15'+/-0°45'
OUTBACK	0°40'+/-0°45'
