Automatic Transmission 5AT
›
General Description
›
Components With Torque Specifications
›
Transfer Case, Extension Case & Reduction Gear
Transfer Case, Extension Case & Reduction Gear

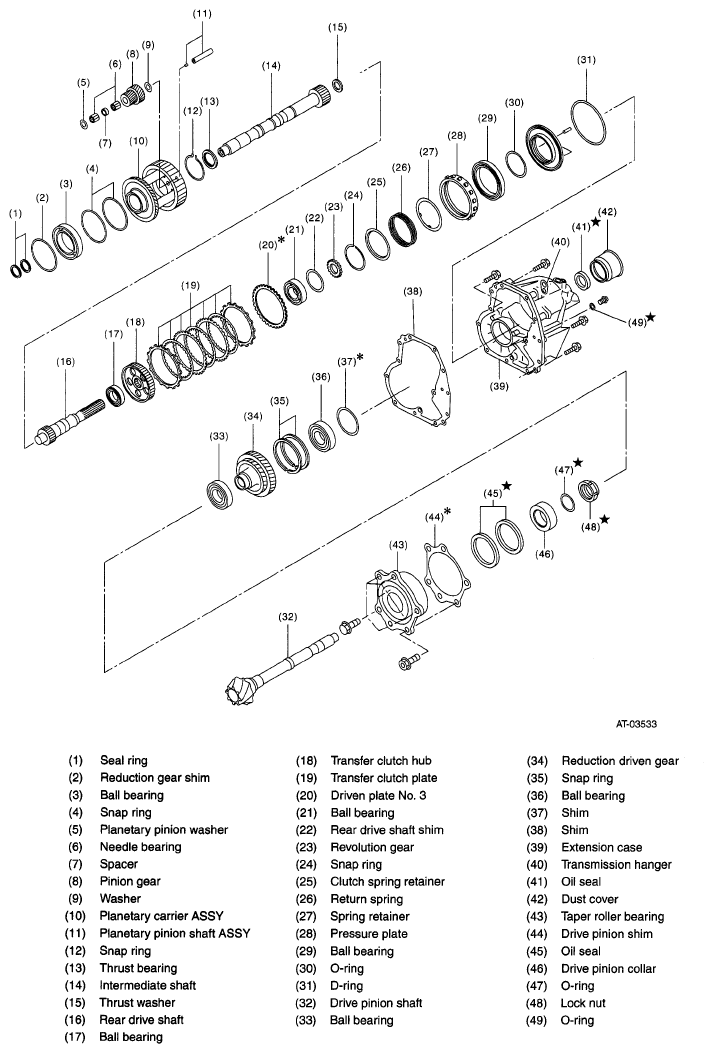

Fig 1: Identifying Transfer Case, Extension Case & Reduction Gear Components
