Anti-Lock Brake Control System - Vehicle Dynamics Control (VDC)
›
General Description
›
Components With Torque Specifications
›
VDC Control Module And Hydraulic Control Unit (VDCCM&H/U)
VDC Control Module And Hydraulic Control Unit (VDCCM&H/U)

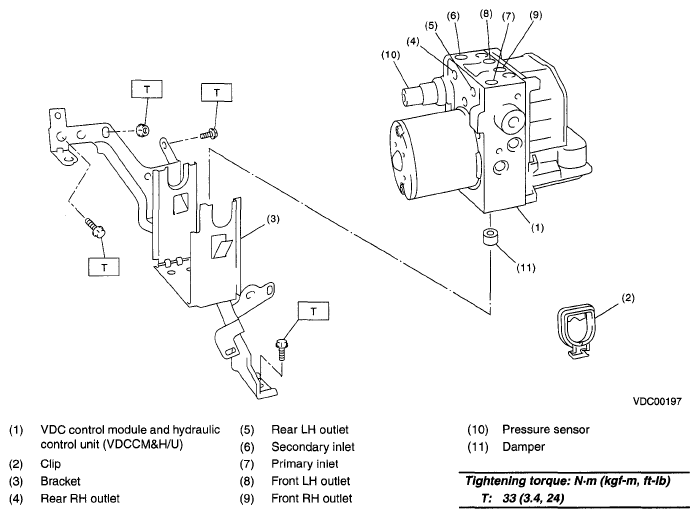

Fig 1: VDC Control Module And Hydraulic Control Unit (VDCCM&H/U) Replacement Components With Torque Specifications
