Conditions For VDC Sequence Control

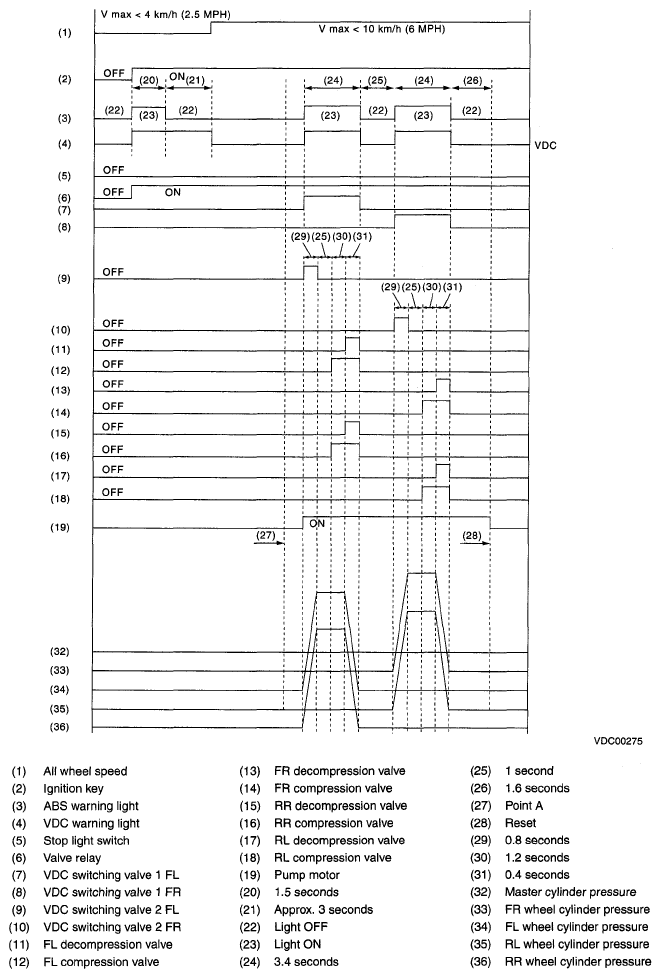

Fig 1: VDC Sequence Control Conditions Chart

G05020270

NOTE: The control operation starts from point A.
