Automatic Transmission 5AT
›
General Description
›
Components With Torque Specifications
›
Transmission Control Device & Parking Support
Transmission Control Device & Parking Support

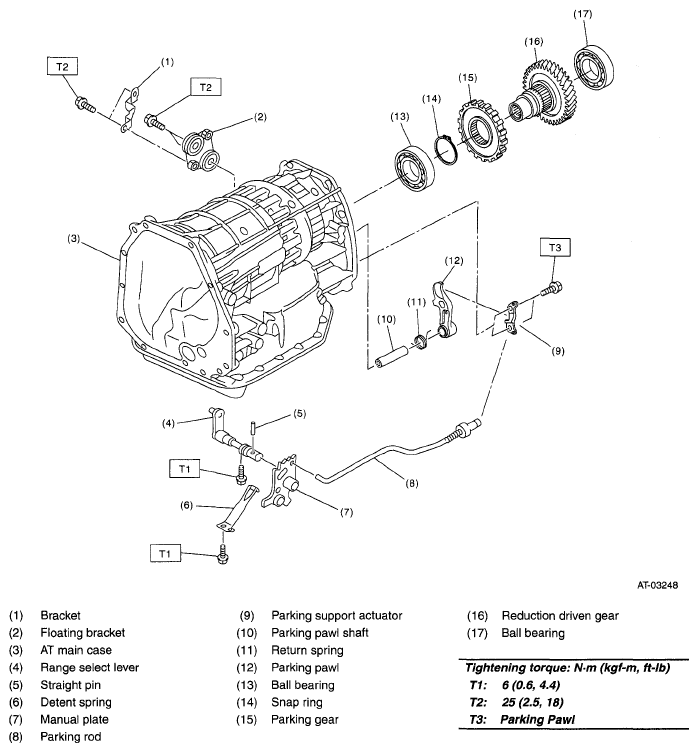

Fig 1: Transmission Control Device & Parking Support With Torque Specifications
