Component Description

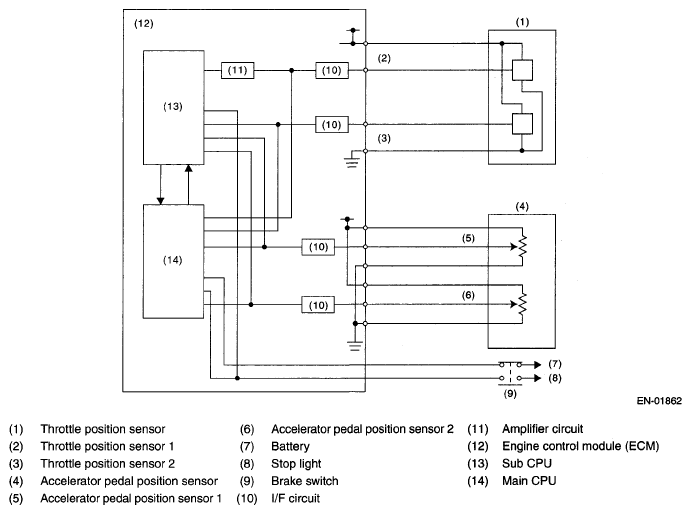

Fig 1: Throttle Position And Accelerator Position Sensor Signal Diagram
G05018359
