SPORT Indicator Light Display: Inspection
DIAGNOSIS:
SPORT indicator light circuit is open or shorted.
TROUBLE SYMPTOM:
When the ignition switch is turned to ON (engine OFF), SPORT indicator light does not illuminate.

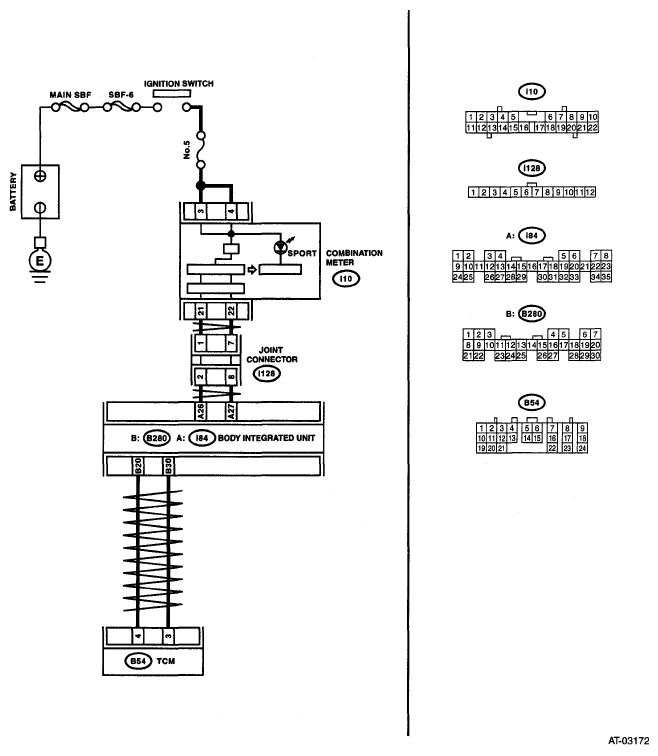

WIRING DIAGRAM:
DIAGNOSTIC PROCEDURE
| Step | Check | Yes | No |
|---|---|---|---|
| 1 CHECK SPORT INDICATOR LIGHT. Turn the ignition switch to ON. |
Does the SPORT indicator light illuminate? | Go to step 2. | Perform the self-diagnosis of combination meter. |
| 2 CHECK SPORT INDICATOR LIGHT. After the ignition switch is ON, wait for at least 2 seconds. |
Does the SPORT indicator light illuminate? | Go to step 3. | Go to step 4. |
| 3 CHECK SPORT INDICATOR LIGHT. Start the engine. |
Does the SPORT indicator light go off? | Normal. Go back to "Basic Diagnostic Procedure". < Ref. to BASIC DIAGNOSTIC PROCEDURE . > | Go to step 7. |
| 4 CHECK SUBARU SELECT MONITOR COMMUNICATION. Connect the Subaru Select Monitor to the data link connector. |
Is the communication between Subaru Select Monitor and TCM normal? | Go to step 5. | Check the power supply ground circuit of TCM and Subaru Select Monitor communication. < Ref. to DIAGNOSTIC PROCEDURE FOR SUBARU SELECT MONITOR COMMUNICATION . > |
| 5 CHECK TCM. Display the current data of TCM using Subaru Select Monitor. |
Is the "Diagnosis Light" output signal "ON"? | Go to step 6. | Replace the TCM. < Ref. to TRANSMISSION CONTROL MODULE (TCM) . > |
| 6 CHECK BODY INTEGRATED UNIT. Display the current data of body integrated unit using Subaru Select Monitor. < Ref. to OPERATION , Subaru Select Monitor. > |
Does the "SPORT Light" input signal "Illuminate"? | Replace the combination meter assembly. < Ref. to COMBINATION METER . > | Check DTC of body integrated unit. < Ref. to OPERATION , Subaru Select Monitor. > |
7 CHECK TCM.
|
Is the "Diagnosis Light" output signal "ON"? | Replace the TCM. < Ref. to TRANSMISSION CONTROL MODULE (TCM) . > | Go to step 8. |
| 8 CHECK BODY INTEGRATED UNIT. Display the current data of body integrated unit using Subaru Select Monitor. < Ref. to OPERATION , Subaru Select Monitor. > |
Does the "SPORT Light" input signal "Illuminate"? | Check DTC of body integrated unit. Perform the diagnosis according to DTC. < Ref. to OPERATION , Subaru Select Monitor. > | Perform the self-diagnosis of combination meter. < Ref. to INSPECTION , Combination Meter System. > |
