Automatic Transmission 5AT
›
General Description
›
Components With Torque Specifications
›
Control Valve & Transmission Harness
Control Valve & Transmission Harness

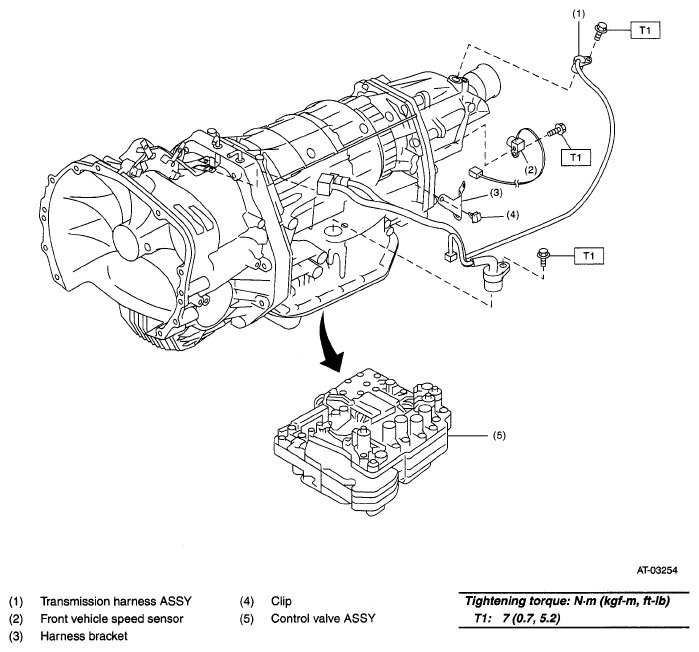

Fig 1: Control Valve & Transmission Harness With Torque Specifications
