Engine Controls - Engine (Diagnostics) (H4DOTC): Electrical Component Location: Location: Engine

• Control module

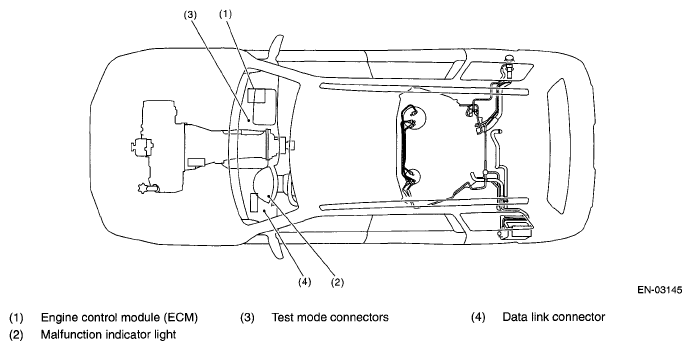

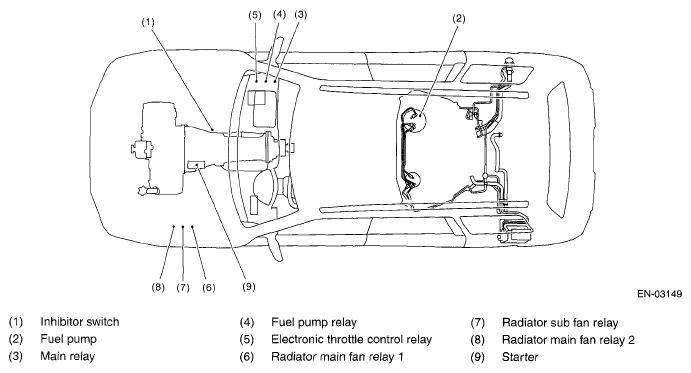

  Fig 1: Identifying Control Module Component Location (1 Of 2)

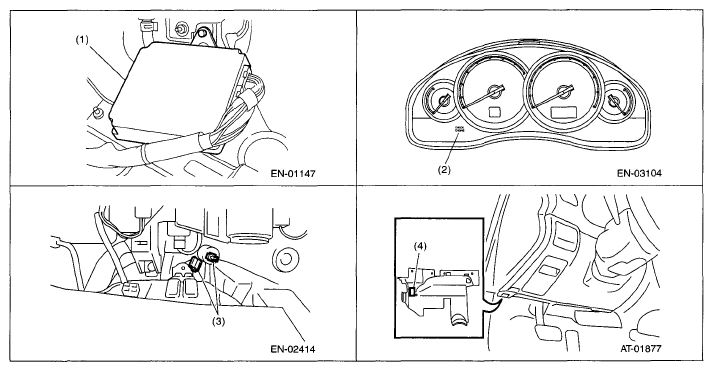

  Fig 2: Identifying Control Module Component Location (2 Of 2)


• Sensor

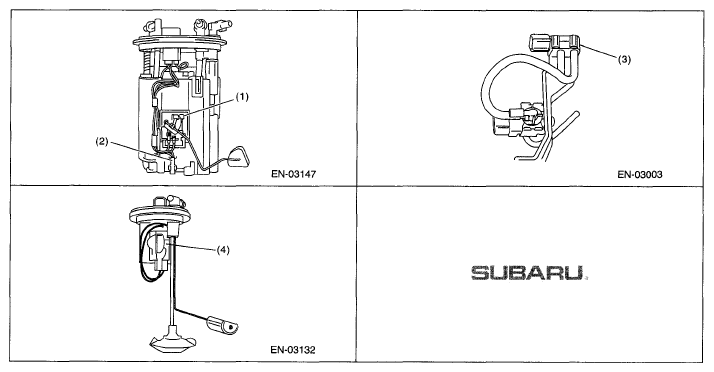

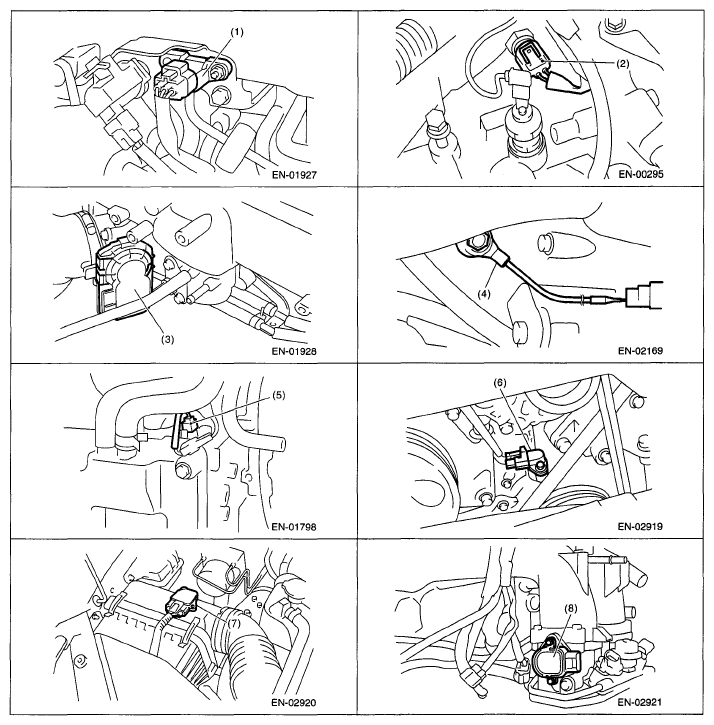

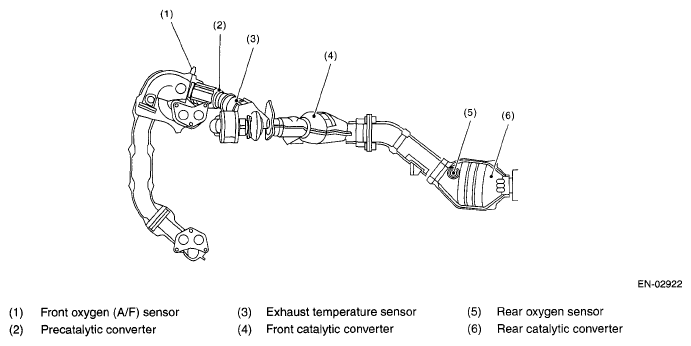

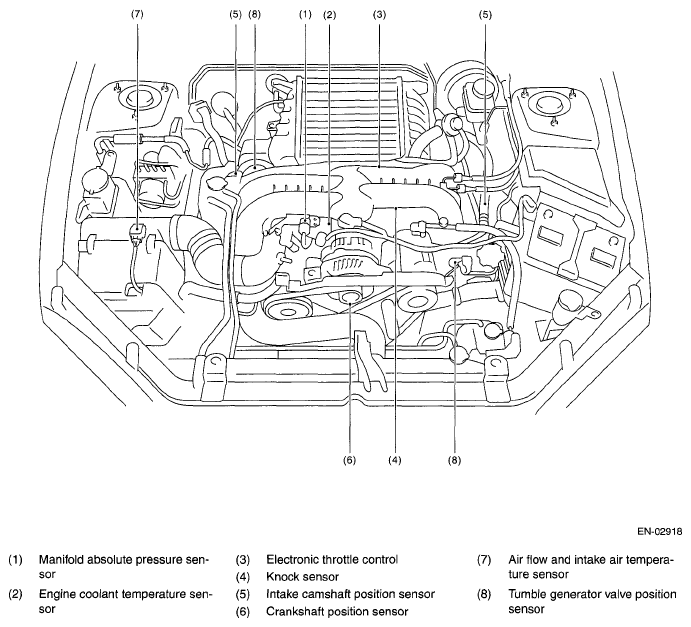

  Fig 3: Identifying Sensor Location (1 Of 6)

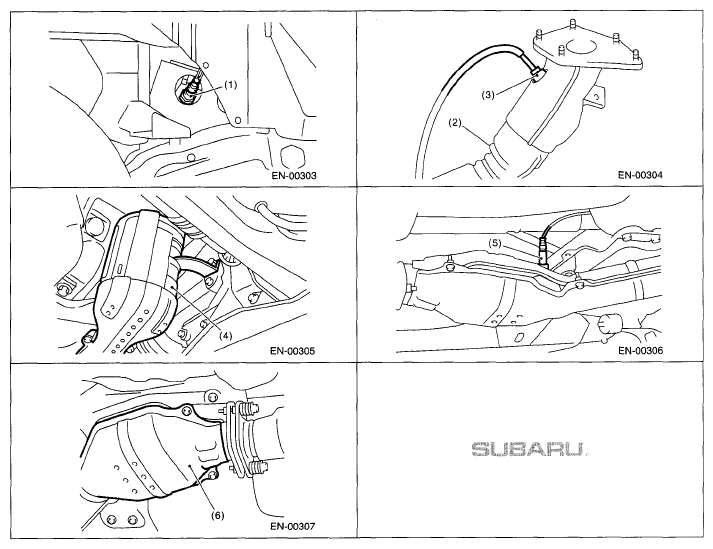

Fig 4: Identifying Sensor Location (2 Of 6)

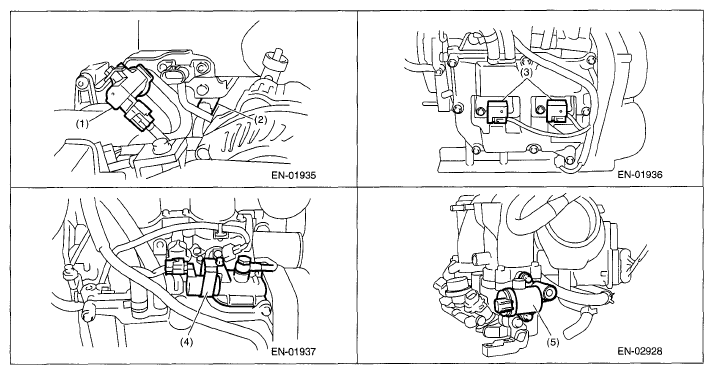

Fig 5: Identifying Sensor Location (3 Of 6)

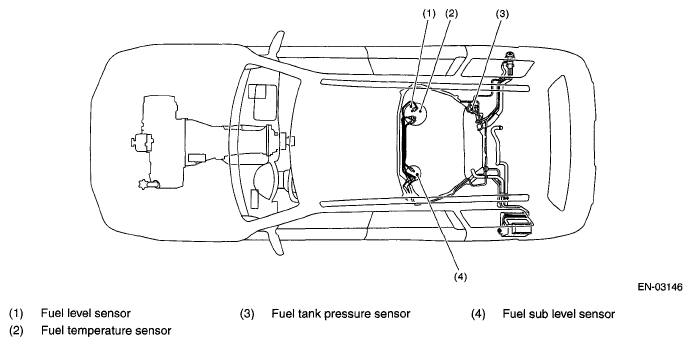

Fig 6: Identifying Sensor Location (4 Of 6)

Fig 7: Identifying Sensor Location (5 Of 6)

Fig 8: Identifying Sensor Location (6 Of 6)

• Solenoid valve, actuator, emission control system parts and ignition system parts

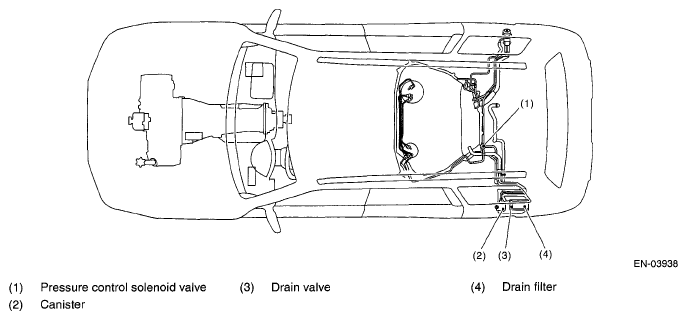

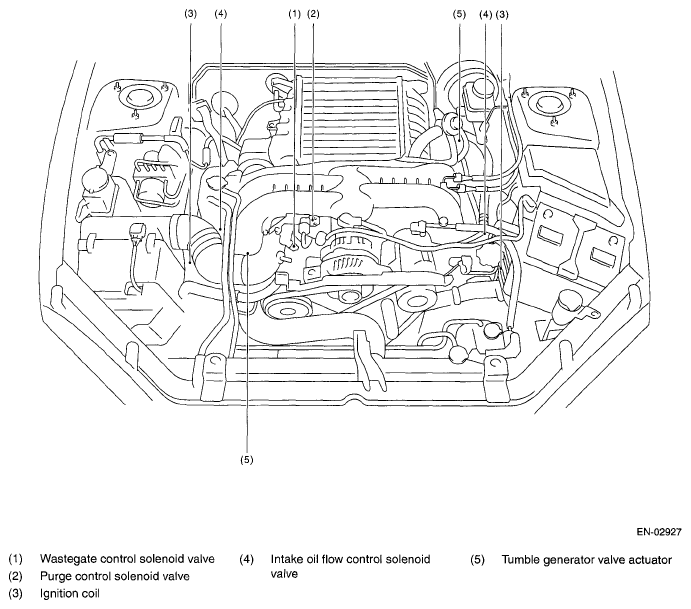

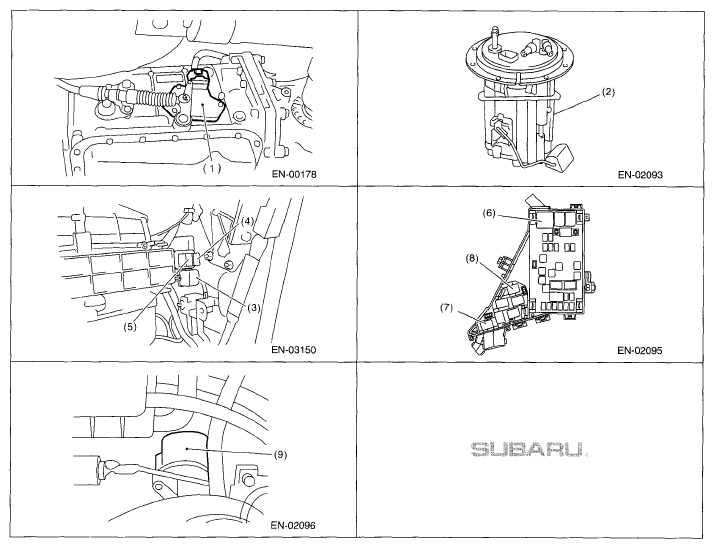

  Fig 9: Identifying Solenoid Valve, Actuator, Emission Control System Parts And Ignition System Part Location (1 Of 6)



Fig 10: Identifying Solenoid Valve, Actuator, Emission Control System Parts And Ignition System Part Location (2 Of 6)

Fig 11: Identifying Solenoid Valve, Actuator, Emission Control System Parts And Ignition System Part Location (3 Of 6)

Fig 12: Identifying Solenoid Valve, Actuator, Emission Control System Parts And Ignition System Part Location (4 Of 6)

Fig 13: Identifying Solenoid Valve, Actuator, Emission Control System Parts And Ignition System Part Location (5 Of 6)

Fig 14: Identifying Solenoid Valve, Actuator, Emission Control System Parts And Ignition System Part Location (6 Of 6)
