Rear Stabilizer: Removal

  1. Lift-up the vehicle, and then remove the rear wheels.
  2. Remove the stabilizer link.

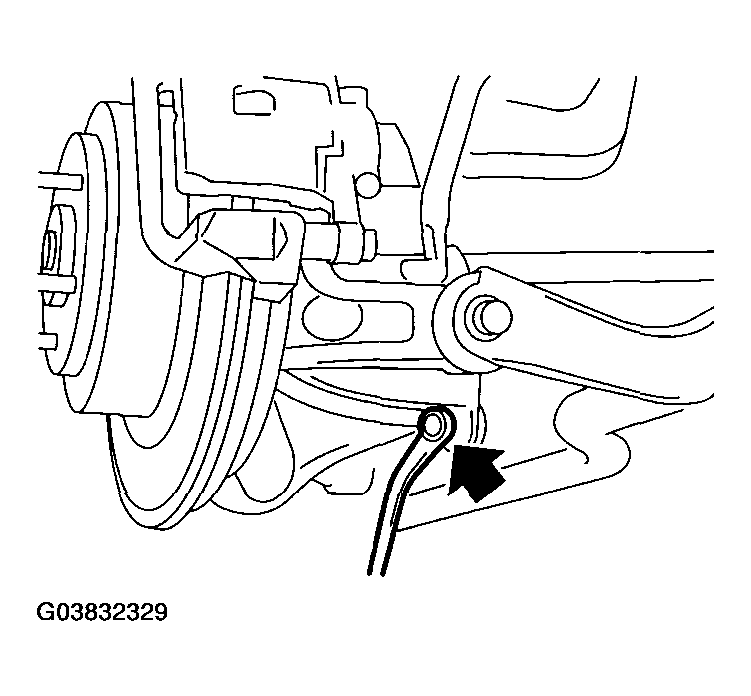

    Fig 1: Removing Stabilizer Link
    G03832329Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the stabilizer bracket.
Fig 2: Removing Stabilizer Bracket
G03832330Courtesy of SUBARU OF AMERICA, INC.
