Automatic Transmission (Diagnostics) 4AT
›
Electrical Component Location
›
Location
›
Control Module
Control Module

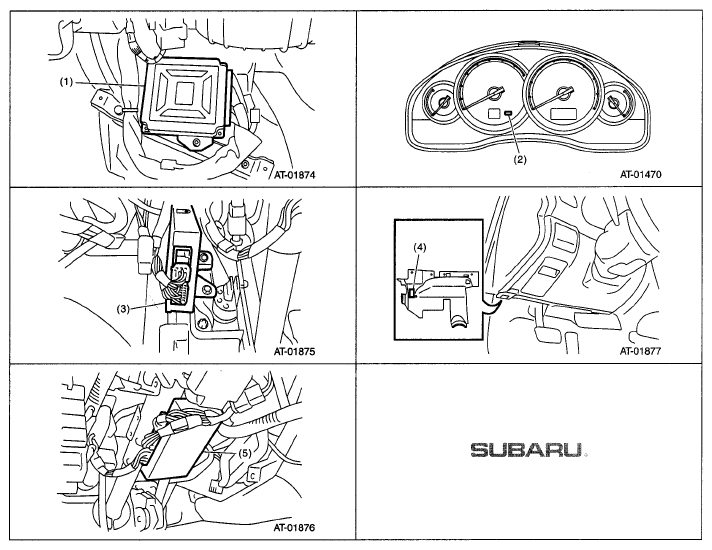

Fig 1: Identifying Control Module Components Locations (1 Of 2)
Fig 2: Identifying Control Module Components Locations (2 Of 2)
