Automatic Transmission 4AT
›
General Description
›
Components With Torque Specifications
›
Transfer And Extension Case
Transfer And Extension Case

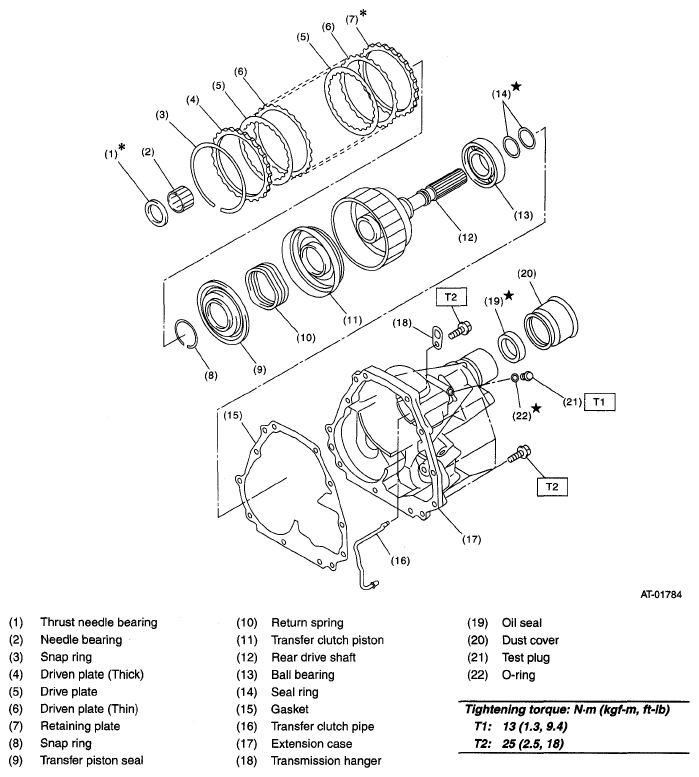

Fig 1: Exploded View Of Transfer And Extension Case Components With Torque Specifications
Courtesy of SUBARU OF AMERICA, INC.
