Automatic Transmission 4AT
›
General Description
›
Components With Torque Specifications
›
Transmission Mounting
Transmission Mounting

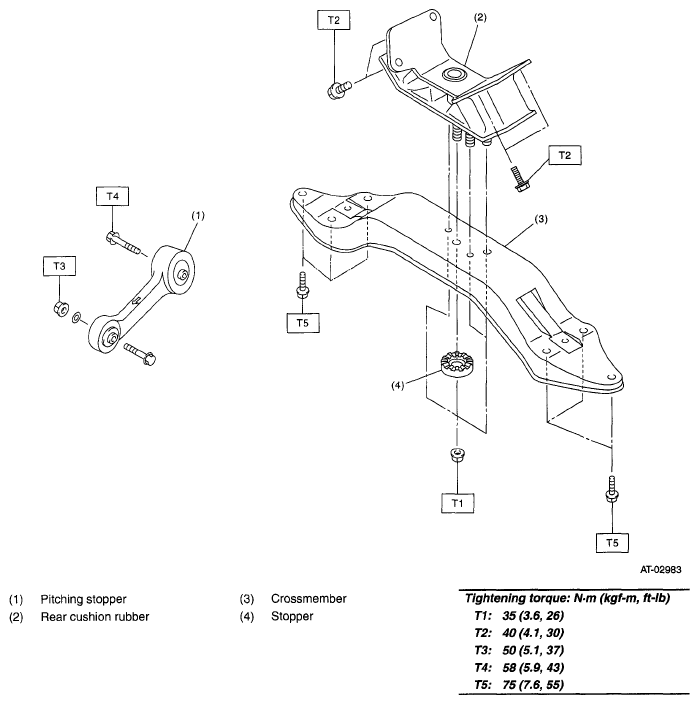

Fig 1: Exploded View Of Transmission Mounting Components With Torque Specifications
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
