Seat System - Seats
›
General Description
›
Components With Torque Specifications
›
Second-Row Seats
Second-Row Seats

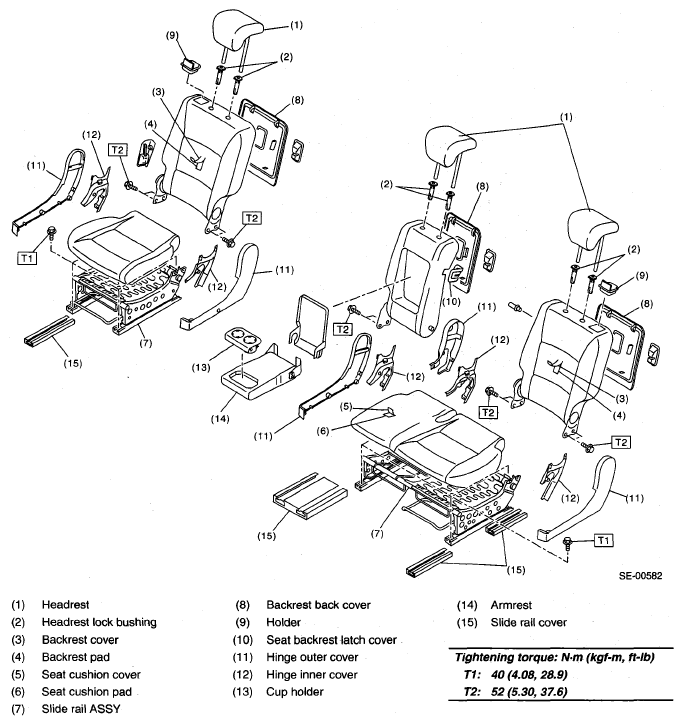

Fig 1: Identifying Second-Row Seats Components With torque Specifications
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
