Combination Meter: Removal

  1. Disconnect the ground cable from battery.
  2. Set the tilt steering at the lowest position.
  3. Remove the console box. < Refer to REMOVAL , Console Box. >
  4. Remove the control panel. < Refer to REMOVAL , Control Panel. >
  5. Remove the instrument panel lower cover. < Refer to REMOVAL , Instrument Panel Lower Cover. >
  6. Remove the console side panel. < Refer to REMOVAL , Center Console. >
  7. Remove the meter hood.
  8. Remove the screws of combination meter (two for upper side, two for lower side) and pull the combination meter.

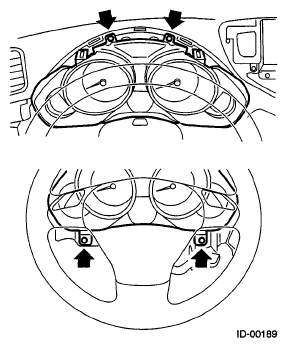

    Fig 1: Identifying Combination Meter Screws
    G05033566Courtesy of SUBARU OF AMERICA, INC.
  9. Disconnect the connector in the rear side of combination meter to remove meter.
CAUTION:
  • Be careful not to damage the meter or instrument panel.
  • Pay particular attention to avoid damaging the meter glass.
