Mechanism & Function - Engine Lubrication System (H6DO)
›
Engine Oil Flow
Engine Oil Flow

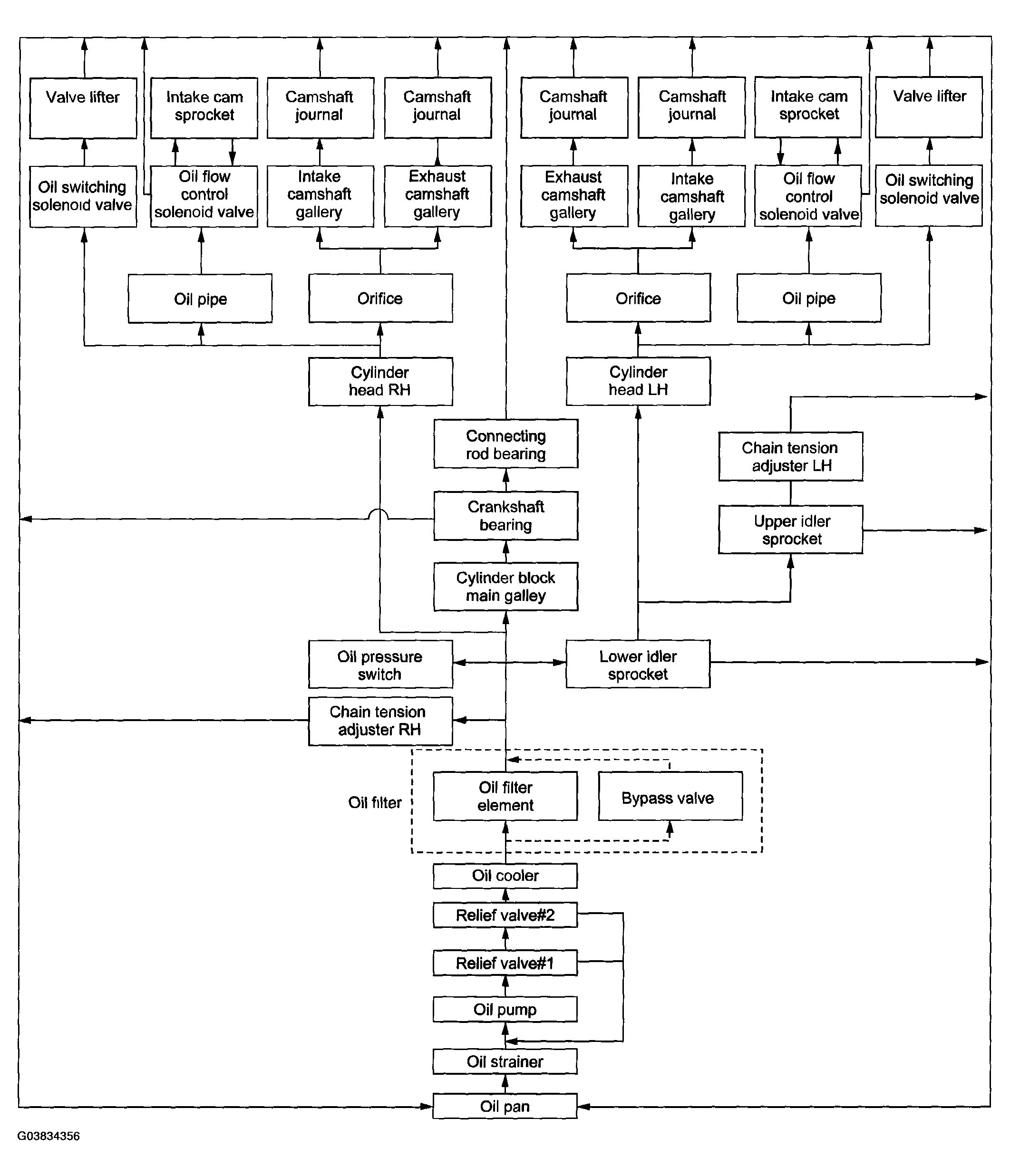

Fig 1: Engine Oil Flow Diagram
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
