Periodic Maintenance Services: V-belt: Replacement

  1. Remove the cover.
  2. Fit the tool to the belt tensioner mounting bolt.
  3. Turn the tool in the direction of the arrow, and loosen the V-belt to remove it.

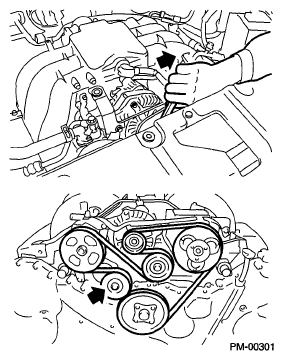

    Fig 1: Identifying V-Belt
    G05030942Courtesy of SUBARU OF AMERICA, INC.
  4. Install in the reverse order of removal.
    Fig 2: Identifying V-Belt Components
    G05345472Courtesy of SUBARU OF AMERICA, INC.
