General Description
›
Components With Torque Specifications
›
Power Assisted System
Power Assisted System
Hose and tank

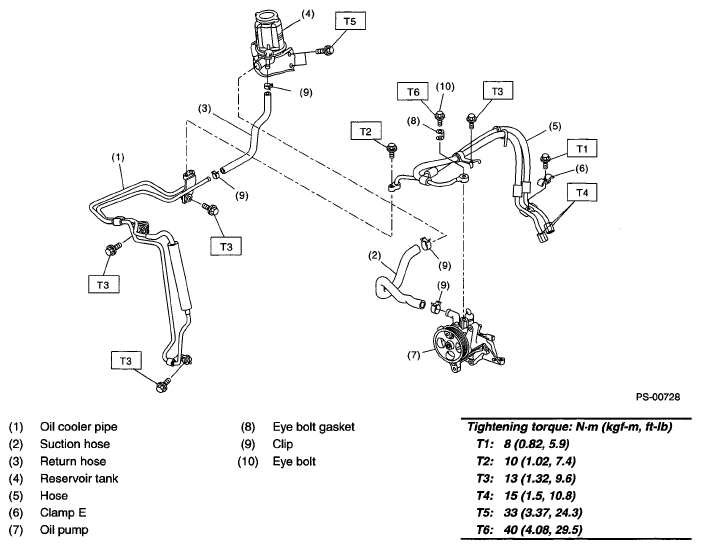

Fig 1: Exploded View Of Hose And Tank With Torque Specifications
Courtesy of SUBARU OF AMERICA, INC.
Gearbox
Fig 2: Exploded View Of Gearbox With Torque Specifications
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
