Automatic Transmission (5AT)
›
General Description
›
Components With Torque Specifications
›
Control Valve & Transmission Harness
Control Valve & Transmission Harness

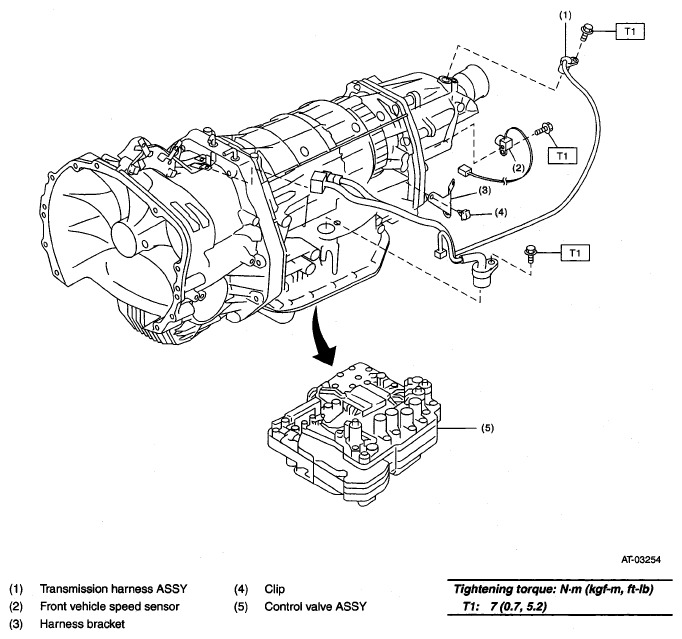

Fig 1: Control Valve & Transmission Harness Replacement Components With Torque Specifications
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
