Body Sealing: Specification

Used material:

Three Bond 4101 (004403063)

-: Sealing application locations

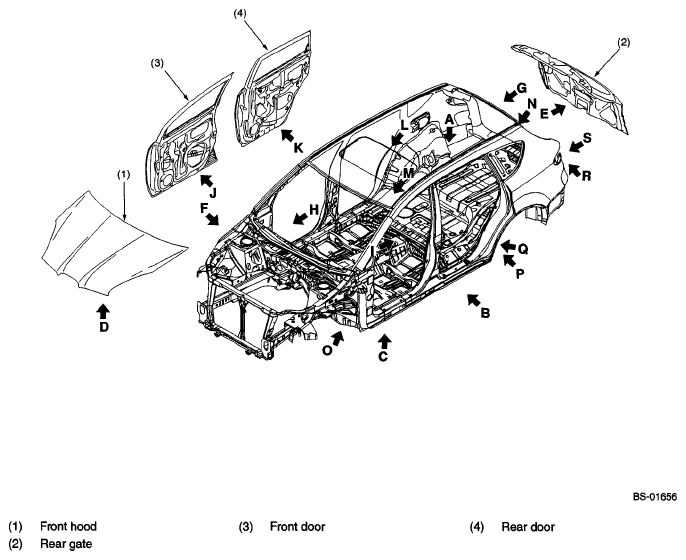

Fig 1: Identifying Body Sealing Application Locations (1 Of 8)

Courtesy of SUBARU OF AMERICA, INC.

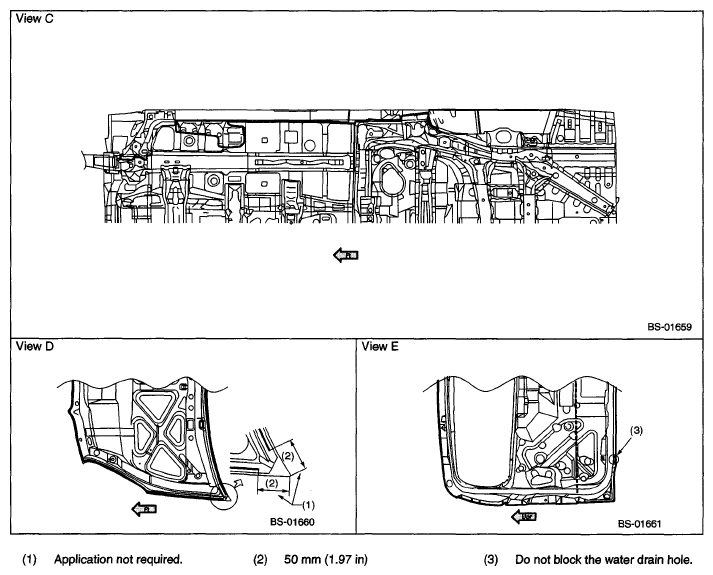

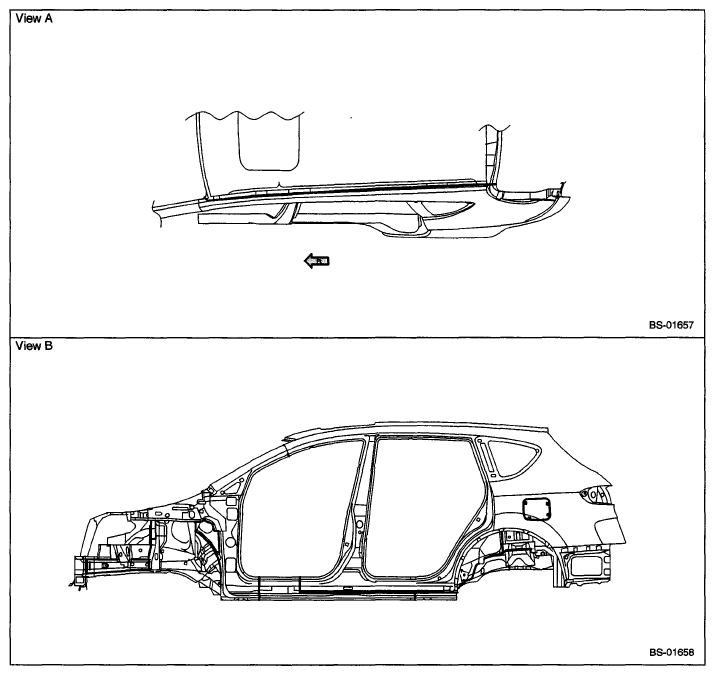

Fig 2: Identifying Body Sealing Application Locations (2 Of 8)

Courtesy of SUBARU OF AMERICA, INC.

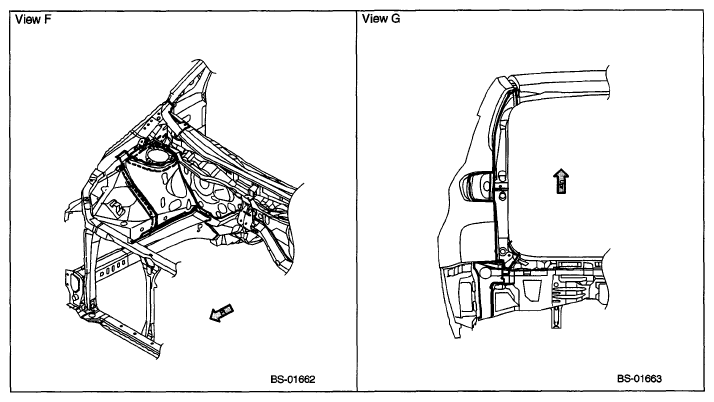

Fig 3: Identifying Body Sealing Application Locations (3 Of 8)

Courtesy of SUBARU OF AMERICA, INC.

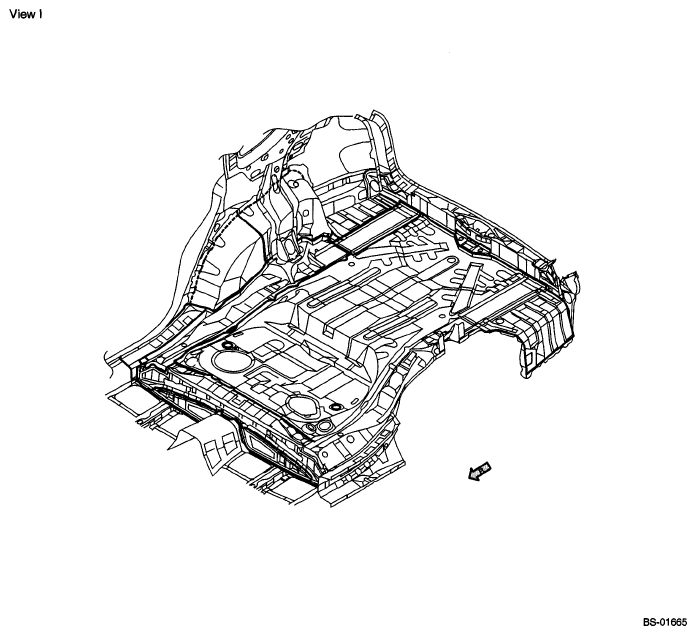

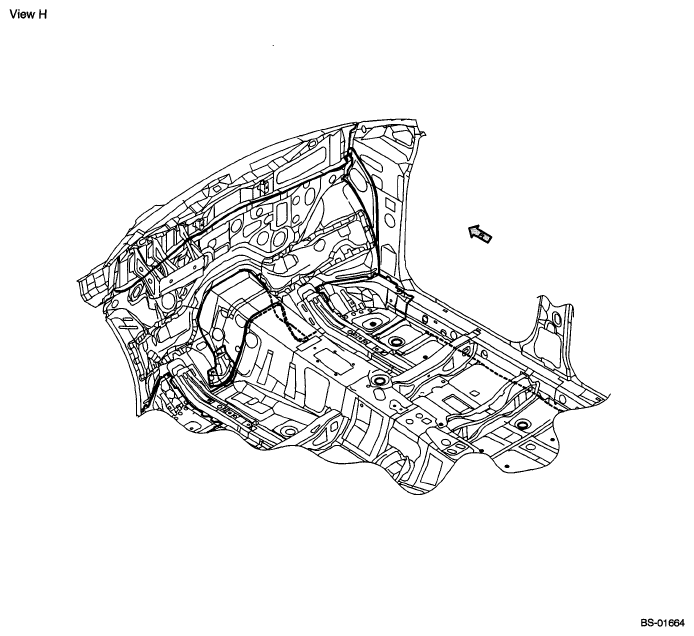

Fig 4: Identifying Body Sealing Application Locations (4 Of 8)

Courtesy of SUBARU OF AMERICA, INC.

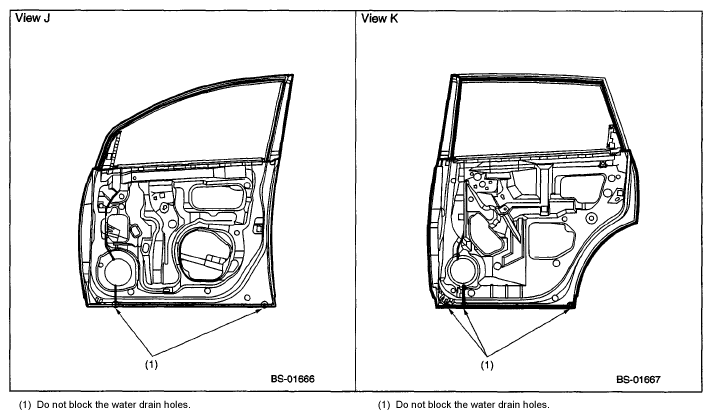

Fig 5: Identifying Body Sealing Application Locations (5 Of 8)

Courtesy of SUBARU OF AMERICA, INC.

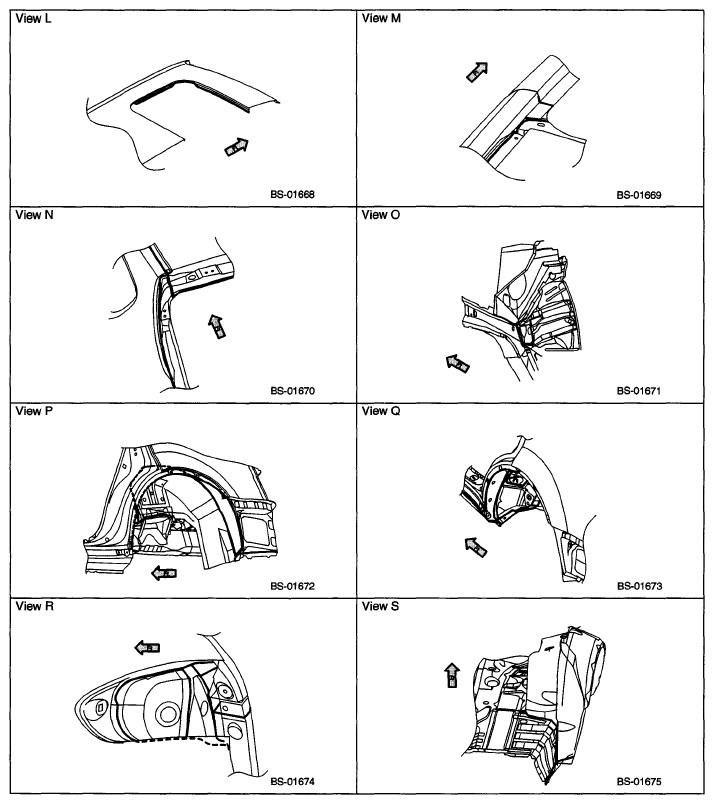

Fig 6: Identifying Body Sealing Application Locations (6 Of 8)

Courtesy of SUBARU OF AMERICA, INC.

Fig 7: Identifying Body Sealing Application Locations (7 Of 8)

Courtesy of SUBARU OF AMERICA, INC.

Fig 8: Identifying Body Sealing Application Locations (8 Of 8)

Courtesy of SUBARU OF AMERICA, INC.
