FixVault
Home
›
Subaru
›
2007
›
B9 Tribeca Limited
›
Repair and Diagnosis
›
Brakes
›
Traction Control
›
Vehicle Dynamics Control (VDC)
›
General Description
›
Components With Torque Specifications
›
VDC Control Module And Hydraulic Control Unit (VDCCM&H/U)
VDC Control Module And Hydraulic Control Unit (VDCCM&H/U)

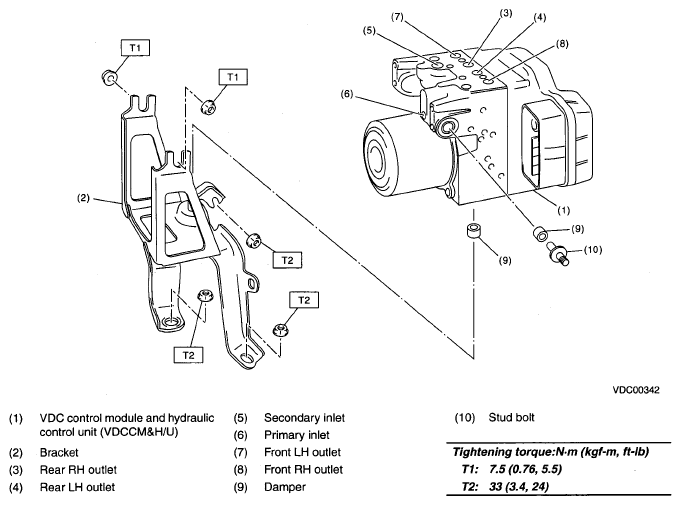

Fig 1: VDC Control Module And Hydraulic Control Unit With Torque Specifications
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
