General Description
›
Components With Torque Specifications
›
Rear Gate Lock
Rear Gate Lock

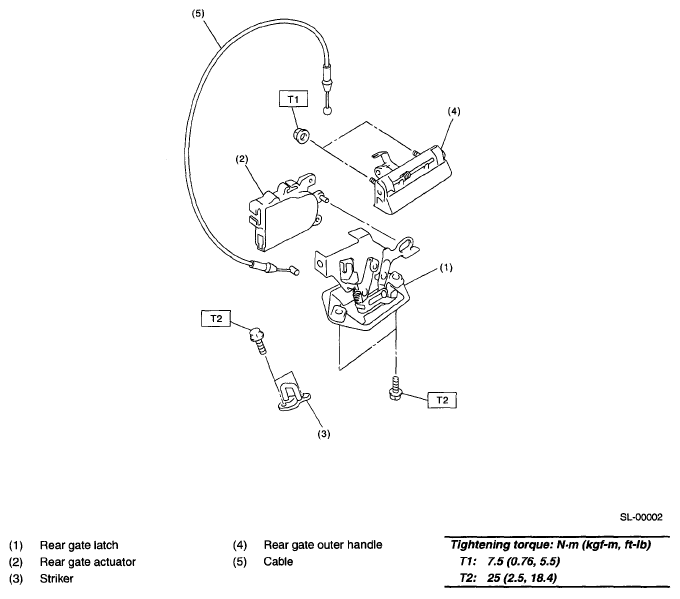

Fig 1: Rear Gate Lock Components With Torque Specifications
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
