Rear Gate Glass: Installation

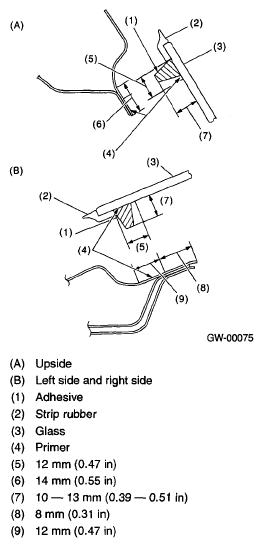

- Install a new rubber strip (A) in position with the edge (B) of the rear gate glass.
Courtesy of SUBARU OF AMERICA, INC.
- Install the glass in the same procedure as for windshield glass.
Courtesy of SUBARU OF AMERICA, INC.
- About one hour after installation, inspect for leaks.
- After completion of ail work, allow the vehicle to stand for about 24 hours.
NOTE:
- When door is opened/closed after glass is bonded, always lower the door glass first, and then open/close it carefully.
- Move the vehicle slowly.
- For minimum drying time and vehicle standing time before driving after bonding, follow instructions or instruction manual from the adhesive manufacturer.
- When a vehicle is returned to the user, tell him or her that the vehicle should not be subjected to heavy impact for at least three days.
- Connect the rear defogger terminals.
- Install the rear gate garnish. <Ref. to
INSTALLATION
Rear Gate Garnish. >
