Headlight Assembly: Removal
WARNING: This page is about a different car, the 2006 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the ground cable from battery.
- Remove the air intake duct (when right side headlight is removed). <Ref. to
REMOVAL
Air Cleaner Case. >
- Remove the front bumper. <Ref. to
REMOVAL
Front Bumper. >

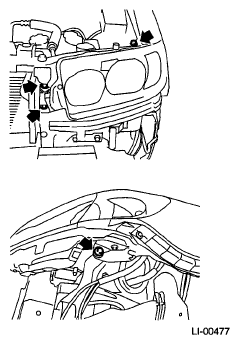

- Remove the four bolts and disconnect the connectors, and then detach the headlight assembly.
Courtesy of SUBARU OF AMERICA, INC.
