Automatic Transmission (4AT)
›
General Description
›
Components With Torque Specifications
›
Transfer And Extension Case
Transfer And Extension Case

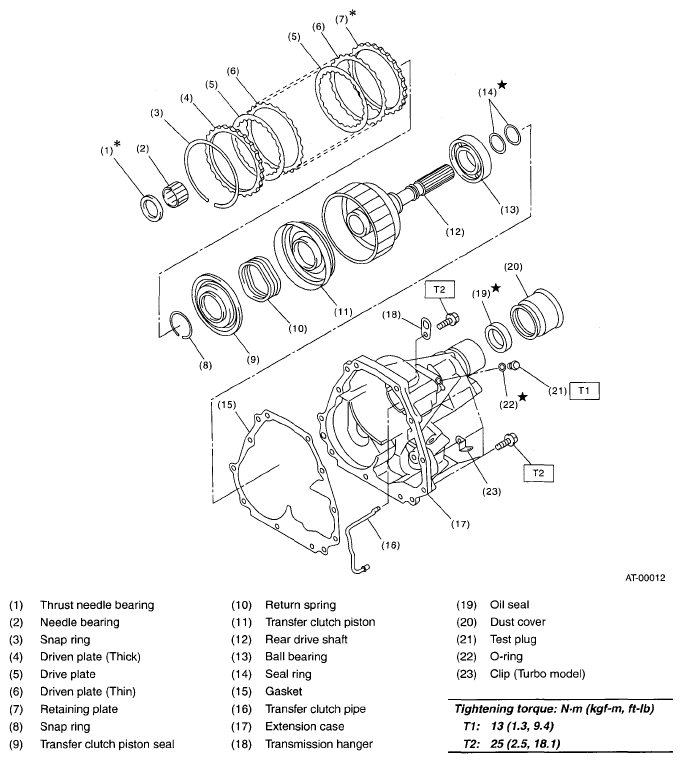

Fig 1: Transfer And Extension Case Replacement Components With Torque Specifications
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
