Engine Lubrication System (H4SO)
›
General Description
›
Components With Torque Specifications
›
Turbo Model
Turbo Model

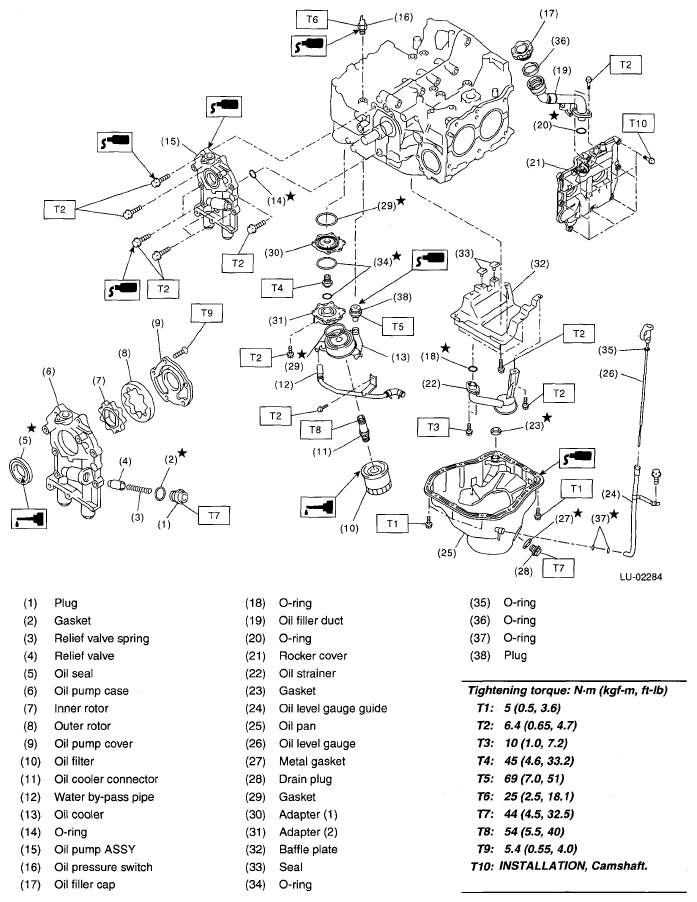

Fig 1: Turbo Model Components With Torque Specifications
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
