Reservoir Tank: Installation

  1. Install the reservoir tank to bracket.
  2. Connect the pipes D to return hose and suction hose to oil pump.

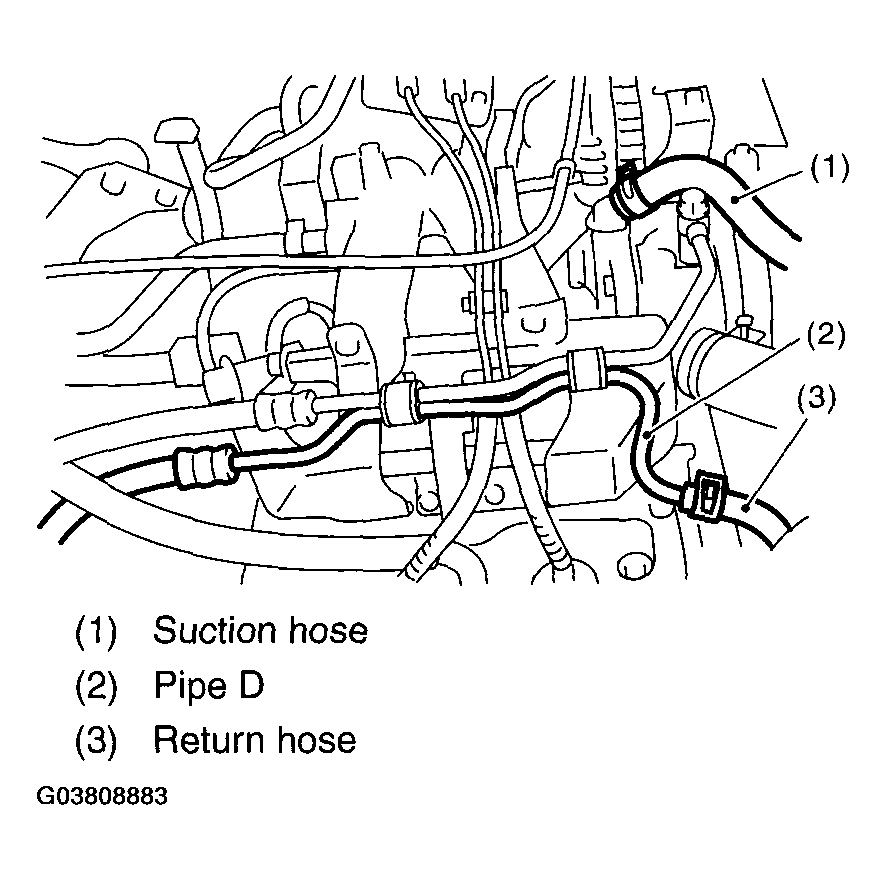

    Fig 1: Identifying Pipe
    G03808883Courtesy of SUBARU OF AMERICA, INC.
  3. Feed the specified power steering fluid up to the specified level. < Ref. to SPECIFICATIONS , General Description. >
