Conditions For Abs Sequence Control

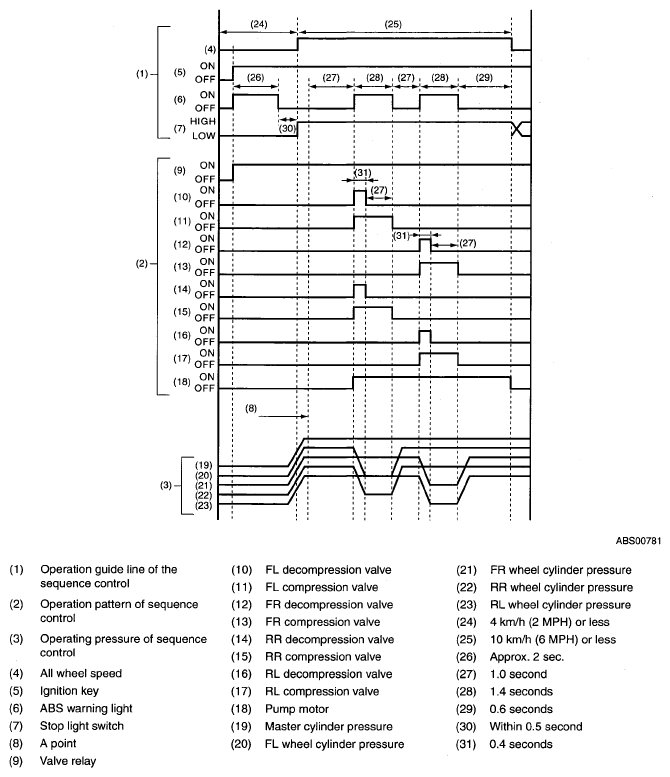

Fig 1: Identifying Operation Pattern Of ABS Sequence Control

Courtesy of SUBARU OF AMERICA, INC.

NOTE:

• The control operation starts from point A.
• HIGH indicates high voltage.
• LOW indicates low voltage.
