Universal Joint: Removal

  1. Remove the steering wheel. < Ref. to REMOVAL , Steering Wheel. >
  2. Make matching mark on the universal joint.
  3. Remove the universal joint bolts, and then remove the universal joint.

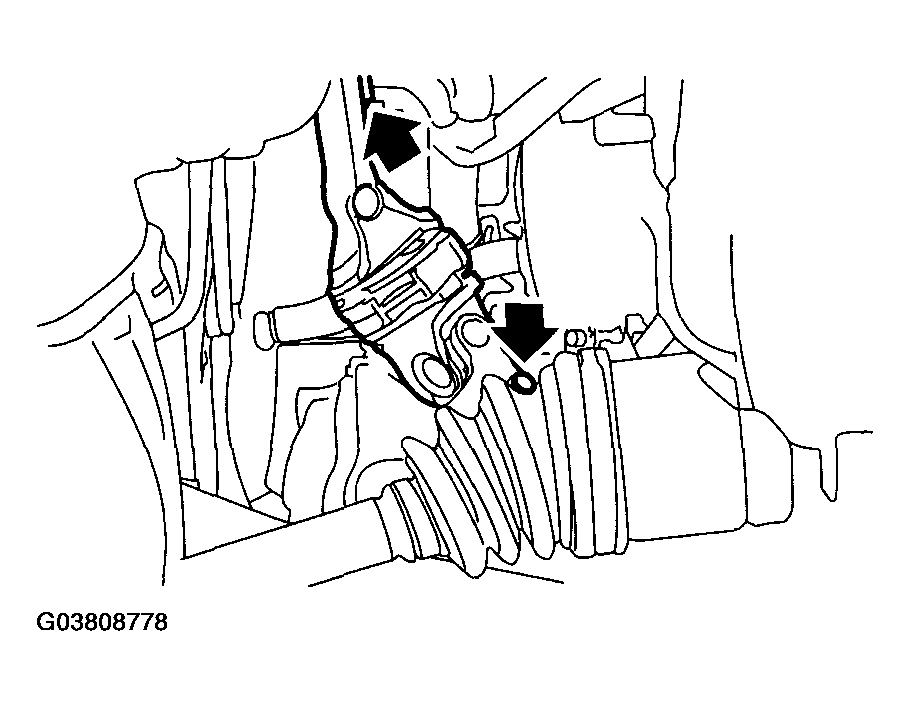

    Fig 1: Identifying Universal Joint Bolts
    G03808778Courtesy of SUBARU OF AMERICA, INC.
