Datum Points: Location

NOTE:

Datum points are specified for body repair.
Guide holes, locators, and indents are provided to facilitate panel replacement and to increase alignment accuracy.
Both right and left reference points are symmetrical.

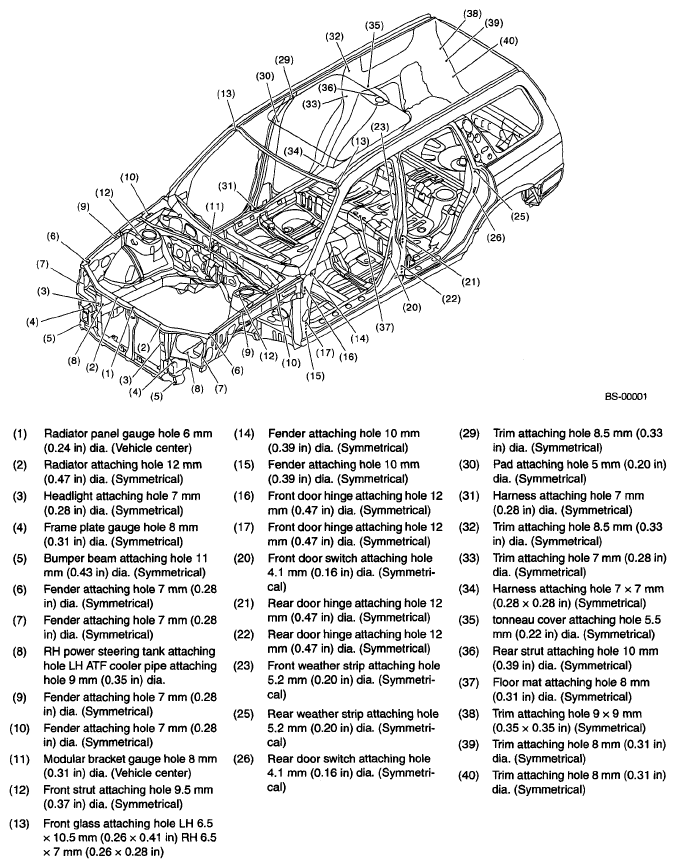

Fig 1: Identifying Datum Points Location (1 Of 6)

Courtesy of SUBARU OF AMERICA, INC.

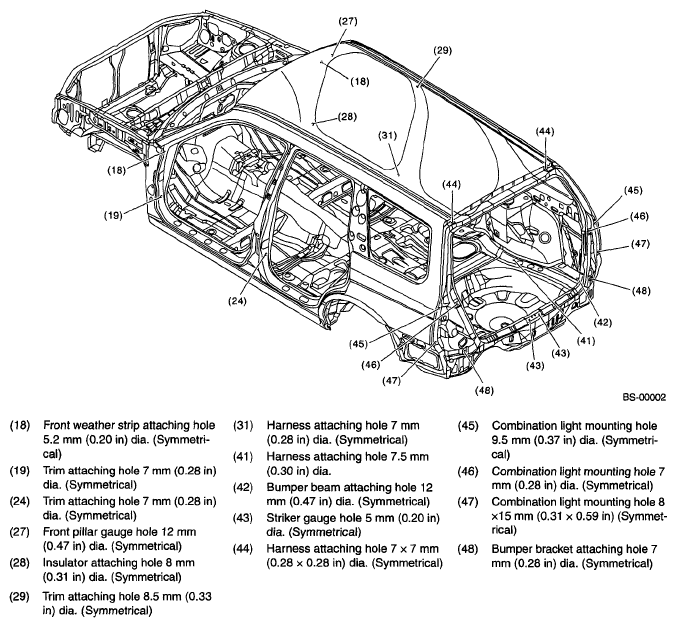

Fig 2: Identifying Datum Points Location (2 Of 6)

Courtesy of SUBARU OF AMERICA, INC.

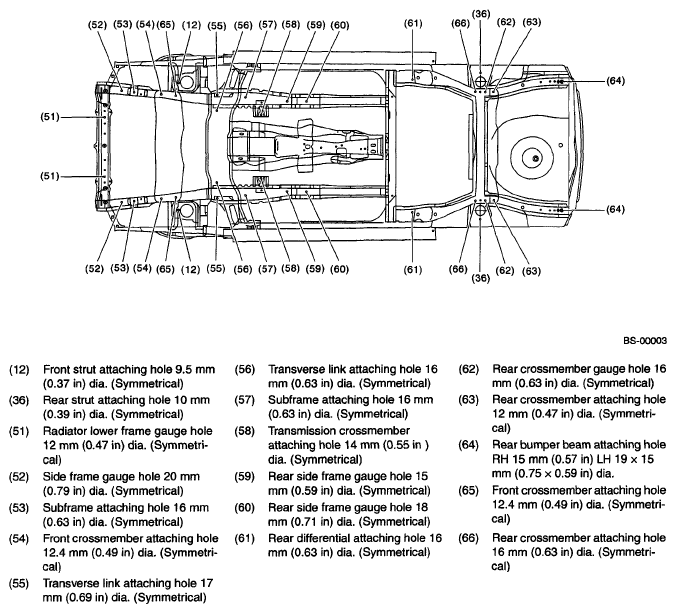

Fig 3: Identifying Datum Points Location (3 Of 6)

Courtesy of SUBARU OF AMERICA, INC.

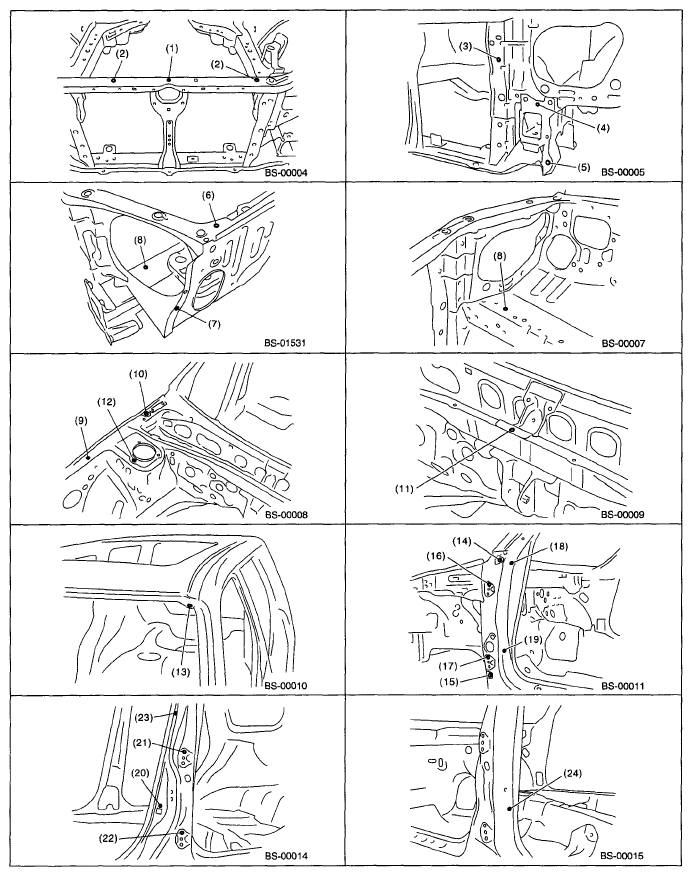

Fig 4: Identifying Datum Points Location (4 Of 6)

Courtesy of SUBARU OF AMERICA, INC.

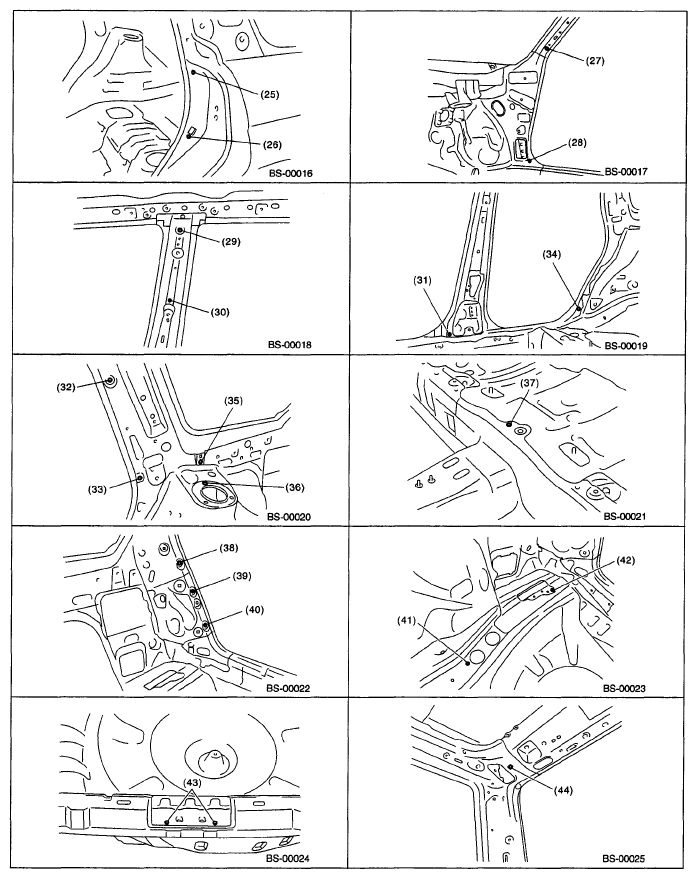

Fig 5: Identifying Datum Points Location (5 Of 6)

Courtesy of SUBARU OF AMERICA, INC.

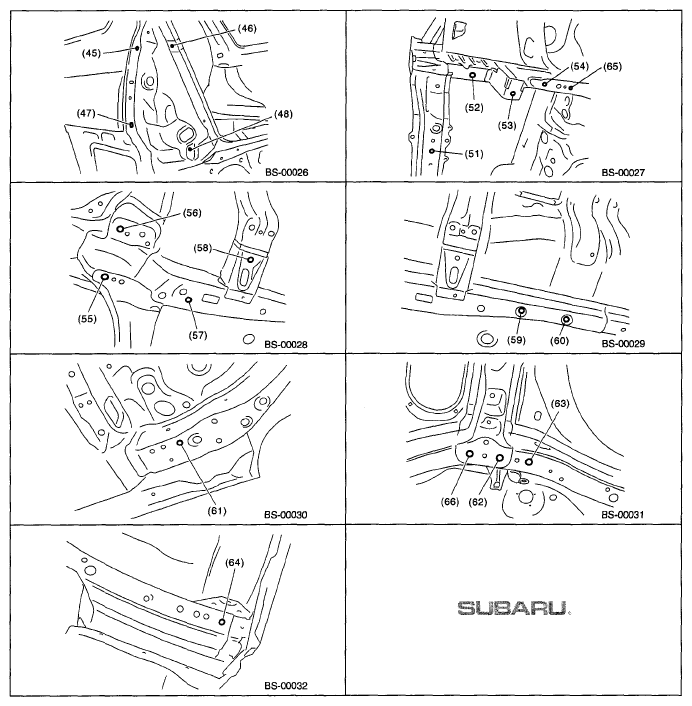

Fig 6: Identifying Datum Points Location (6 Of 6)

Courtesy of SUBARU OF AMERICA, INC.
