Fuel Injection System (H4SO)
›
General Description
›
Components With Torque Specifications
›
Fuel Tank
Fuel Tank

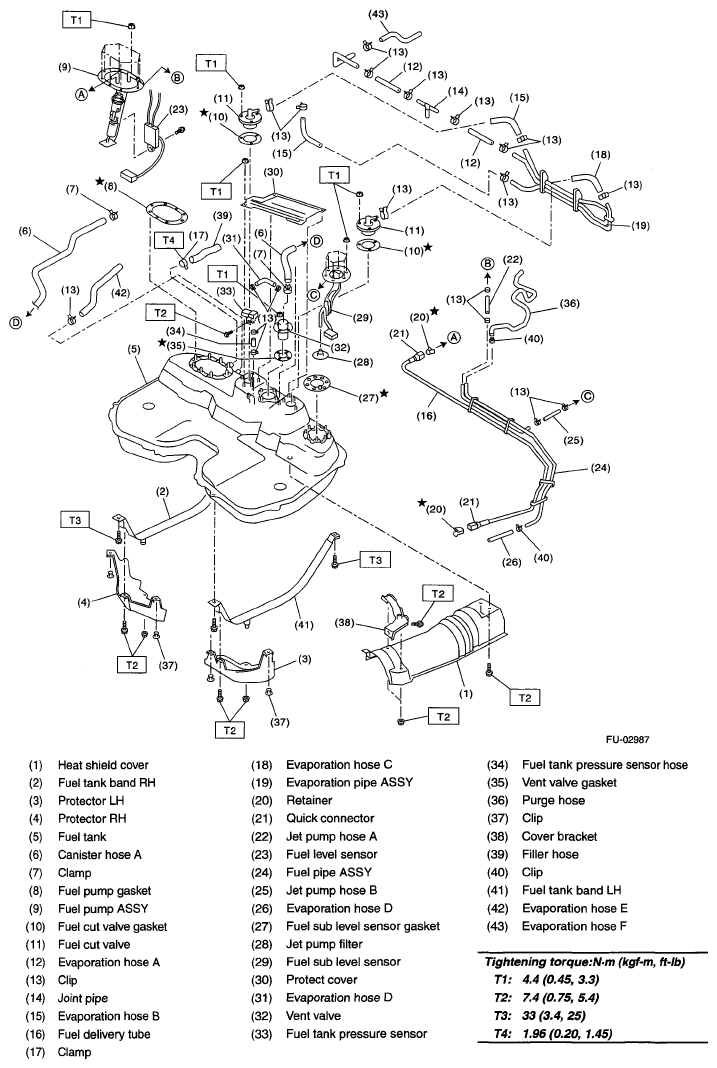

Fig 1: Exploded View Off Fuel Tank With Torque Specifications
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
