Subaru
›
2007
›
Impreza Outback Sport, Automatic
›
Repair and Diagnosis
›
Engine Performance
›
Engine Control Systems
›
Fuel Injection System (H4SO)
›
General Description
›
Components With Torque Specifications
›
Air Intake System
Air Intake System

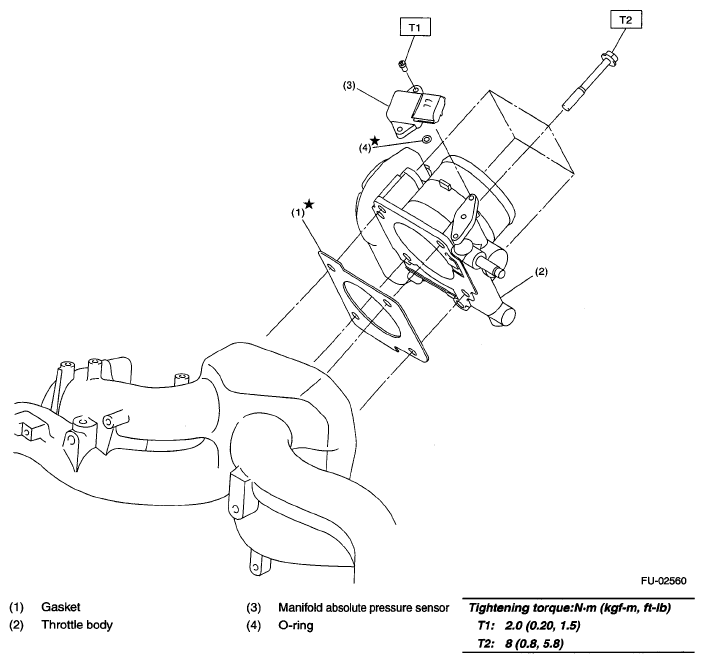

Fig 1: Air Intake System With Torque Specifications
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
