Sub Frame: Installation

Install in the reverse order of removal.

NOTE: Replace the M12 bolt with a new one.

Tightening torque:

T1: 34 N.m (3.5 kgf-m, 25 ft-lb)

T2: 55 N.m (5.6 kgf-m, 41 ft-lb)

T3: 71 N.m (7.2 kgf-m, 52 ft-lb)

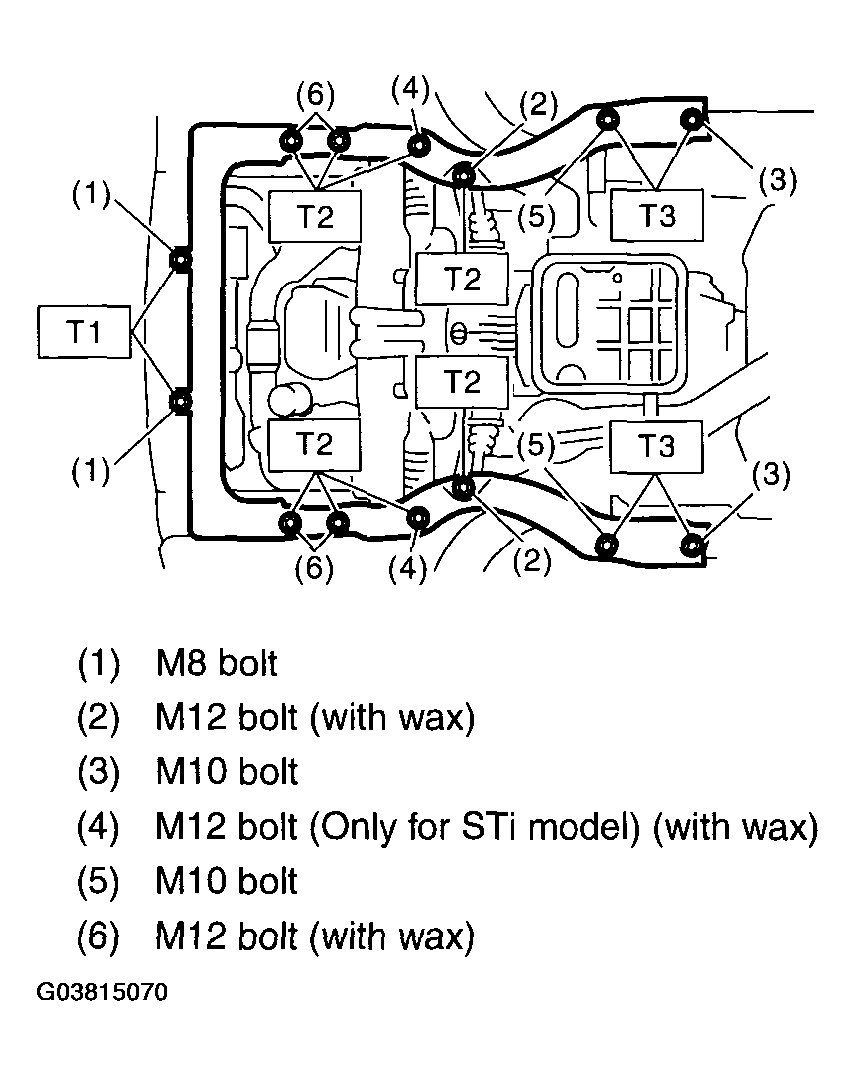

Fig 1: Identifying Subframe Bolts Tightening Order

Courtesy of SUBARU OF AMERICA, INC.
