Sub Frame: Removal

Lift-up the vehicle.
Remove the under cover.
Remove the bolt cover.

Fig 1: Locating Bolt Cover
Courtesy of SUBARU OF AMERICA, INC.
Remove the clip.

Fig 2: Locating Clip
Courtesy of SUBARU OF AMERICA, INC.
Remove the sub frame.

NOTE: Loosen bolt (1) and leave a few threads caught, then remove the bolts in the order of (2), (3), (4), (5), (6), and (7) as shown in Fig 3.

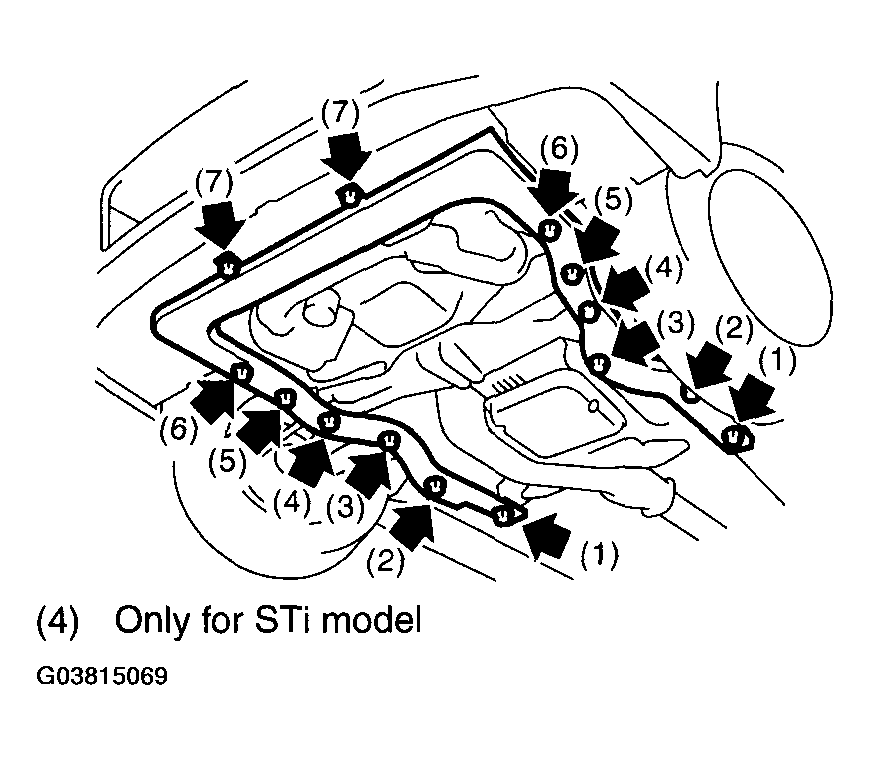

Fig 3: Locating Subframe Bolts Removing Order

Courtesy of SUBARU OF AMERICA, INC.

(4) Only for STI model
