Conditions For Abs Sequence Control

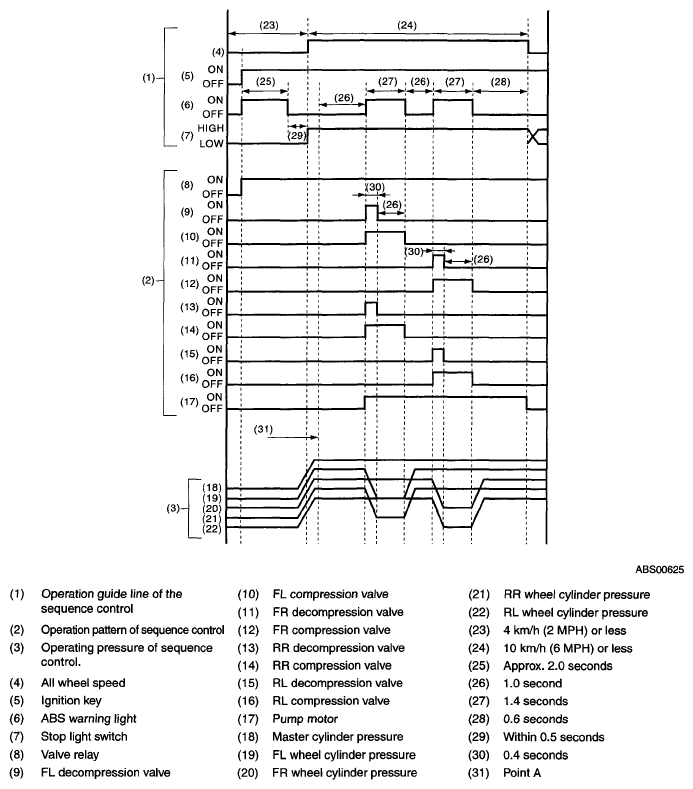

Fig 1: Identifying ABS Sequence Control Timing Chart

Courtesy of SUBARU OF AMERICA, INC.

NOTE:

• When using the Subaru Select Monitor, the control operation starts from point A. (However it is necessary to turn the stop light switch to ON before point A.)
• HIGH indicates high voltage.
• LOW indicates low voltage.
