General Description
›
Components With Torque Specifications
›
Intake Manifold
›
• STI model
• STI model

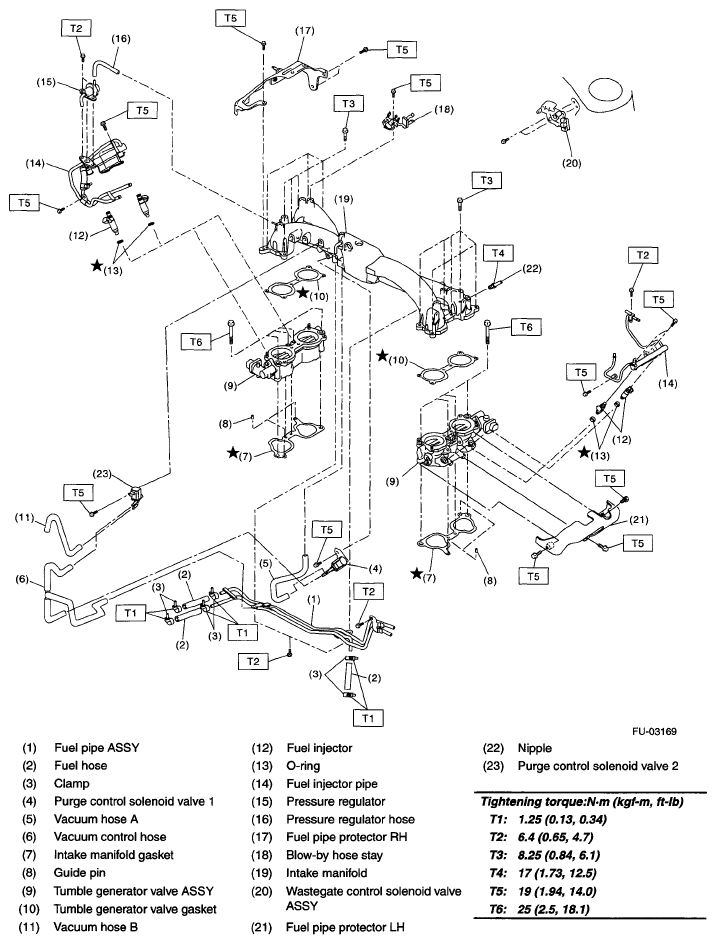

Fig 1: Intake Manifold Replacement Components (STI Model) With Torque Specifications
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
