Engine Controls (Diagnostics) (H4DOTC): Electrical Component Location: Location: Engine: Sensor

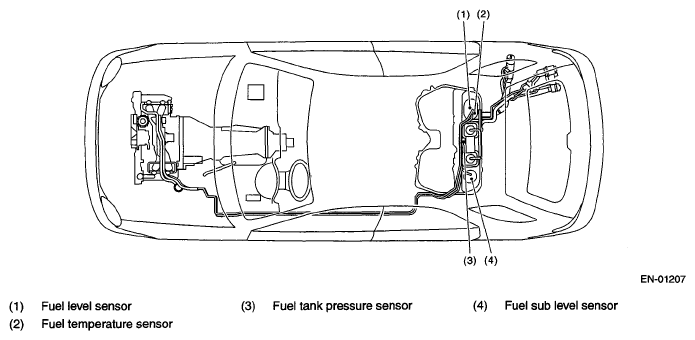

Fig 1: Identifying Electrical Component Location (3 Of 19)

Courtesy of SUBARU OF AMERICA, INC.

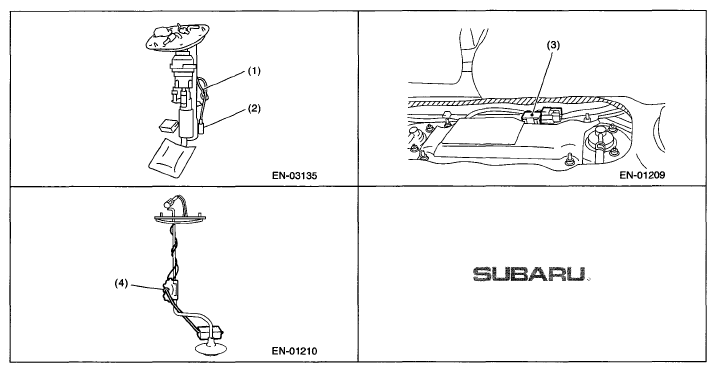

Fig 2: Identifying Electrical Component Location (4 Of 19)

Courtesy of SUBARU OF AMERICA, INC.

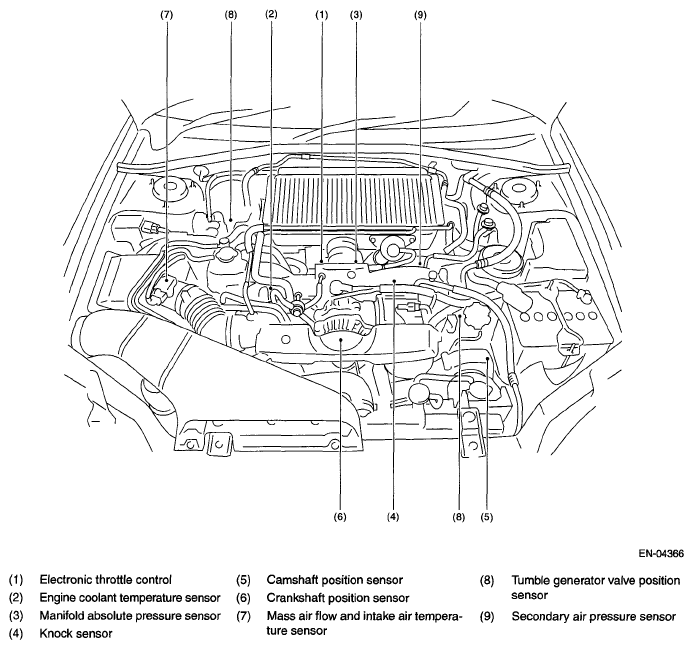

Fig 3: Identifying Electrical Component Location (5 Of 19)

Courtesy of SUBARU OF AMERICA, INC.

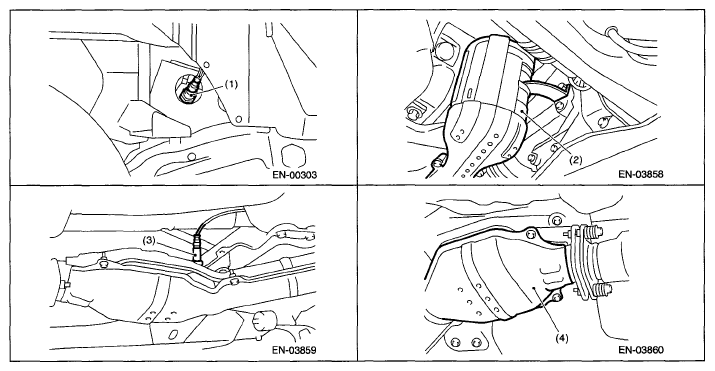

Fig 4: Identifying Electrical Component Location (6 Of 19)

Courtesy of SUBARU OF AMERICA, INC.

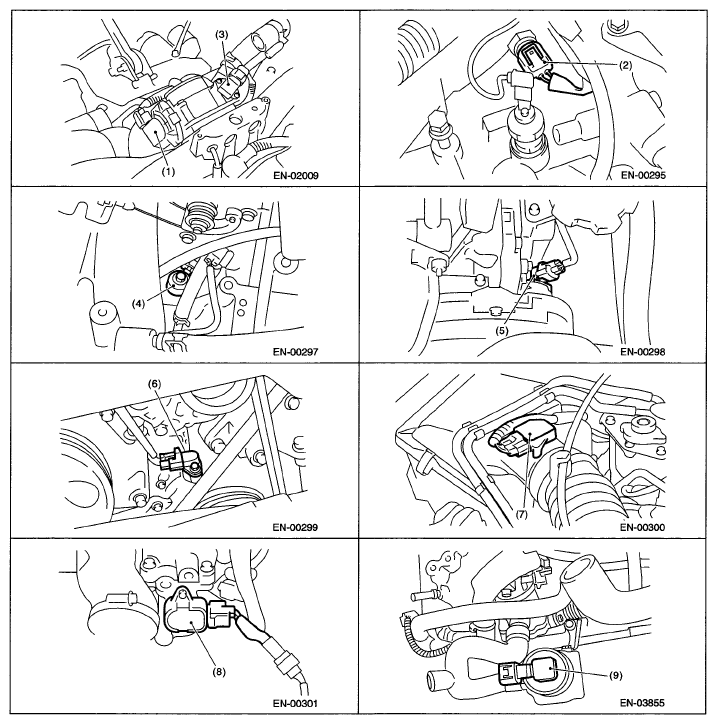

Fig 5: Identifying Electrical Component Location (7 Of 19)

Courtesy of SUBARU OF AMERICA, INC.

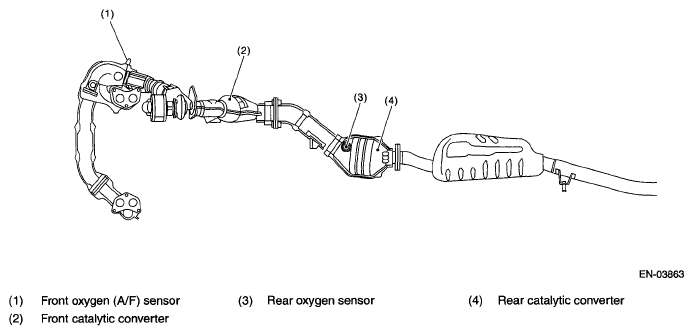

Fig 6: Identifying Electrical Component Location (8 Of 19)

Courtesy of SUBARU OF AMERICA, INC.
