Non-Turbo Model

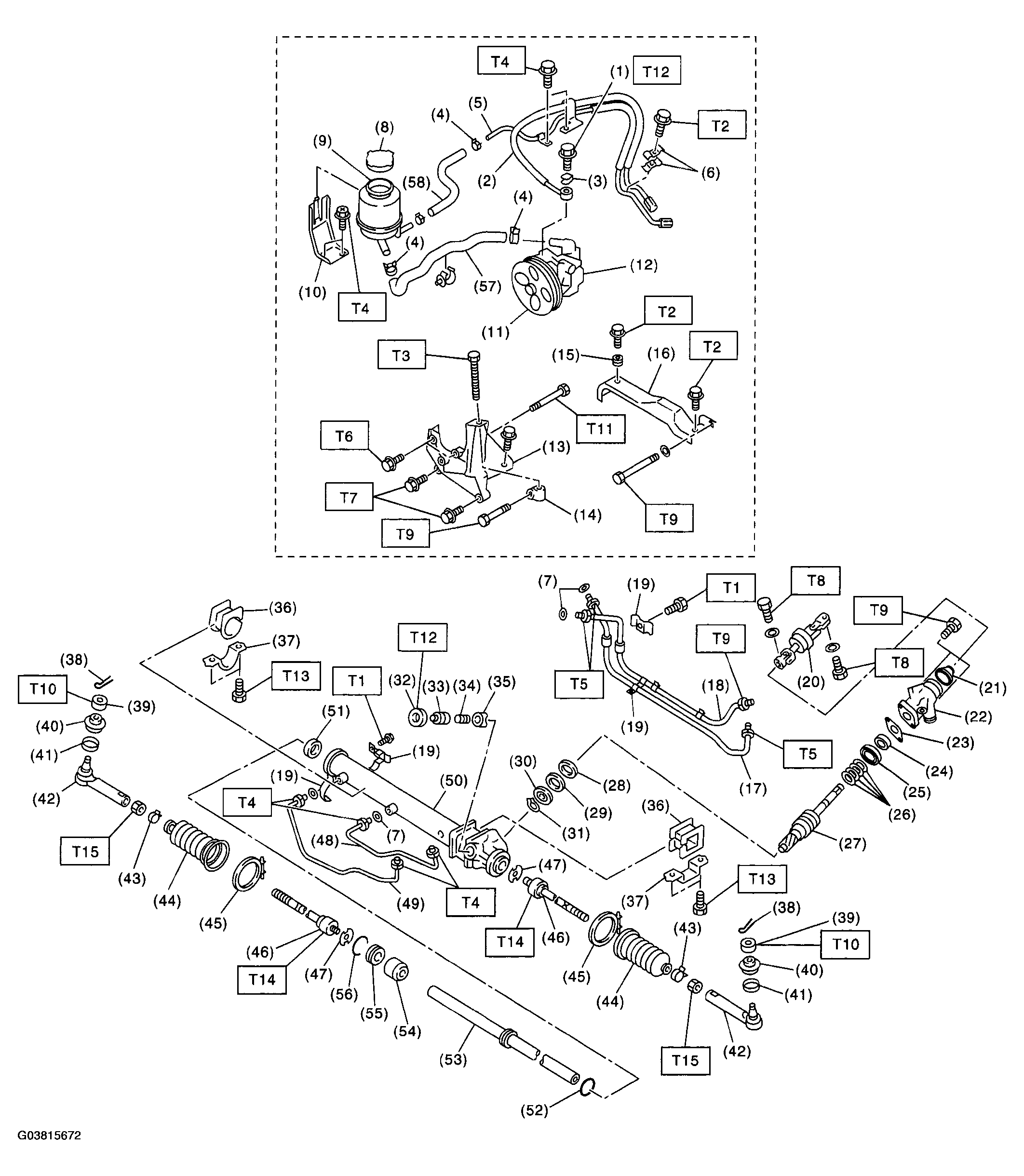

Fig 1: Exploded View Of Power Assisted System (Non-Turbo Model)
G03815672Courtesy of SUBARU OF AMERICA, INC.

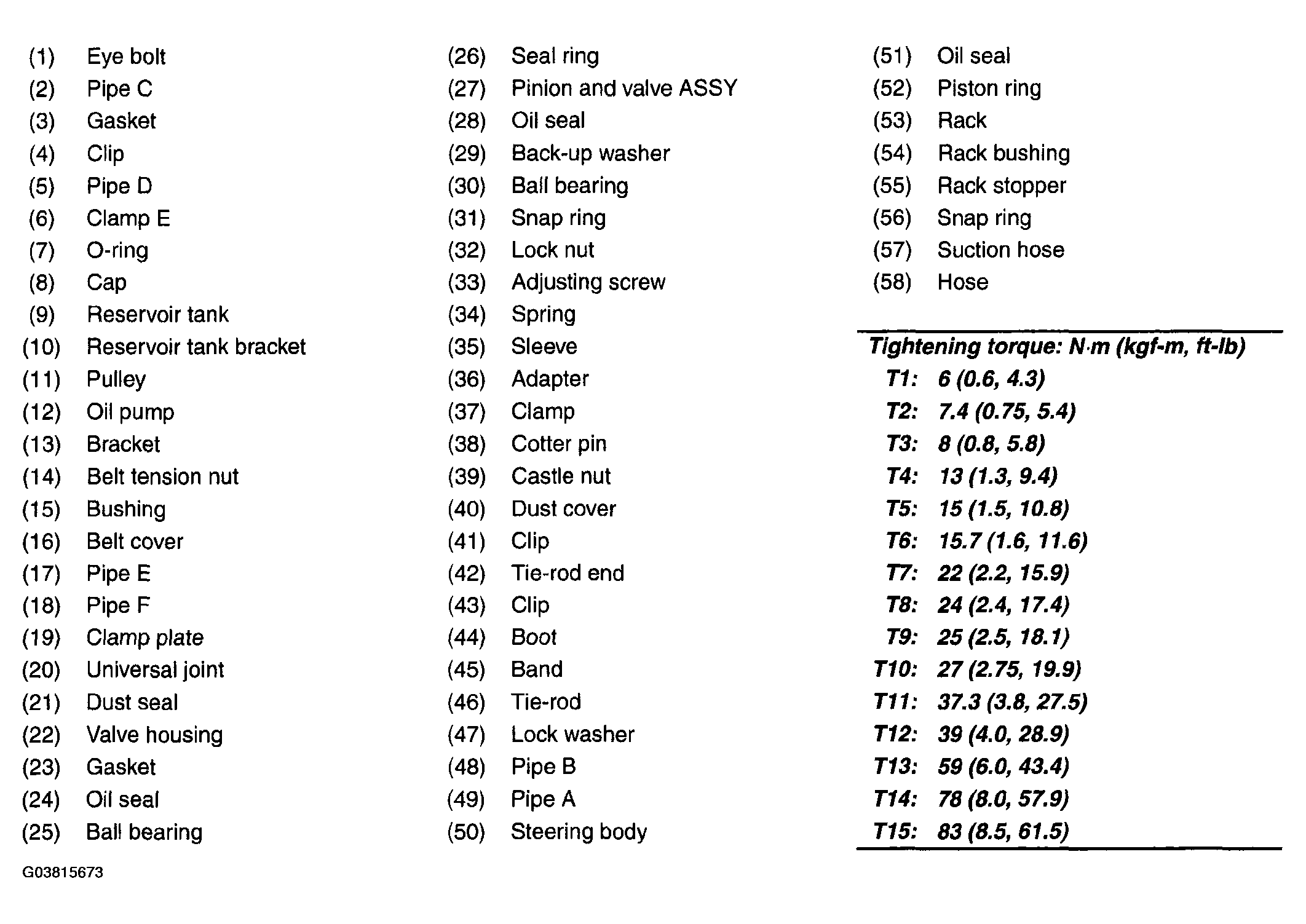

Fig 2: Power Assisted System Reference Table (Non-Turbo Model)
G03815673Courtesy of SUBARU OF AMERICA, INC.
