Turbo Model

Secure the gearbox removed from vehicle in vise using the ST.
ST 926200000 STAND

CAUTION: Secure the gearbox assembly in a vise using the ST as shown in Fig 1. Do not attempt to secure it without this ST.

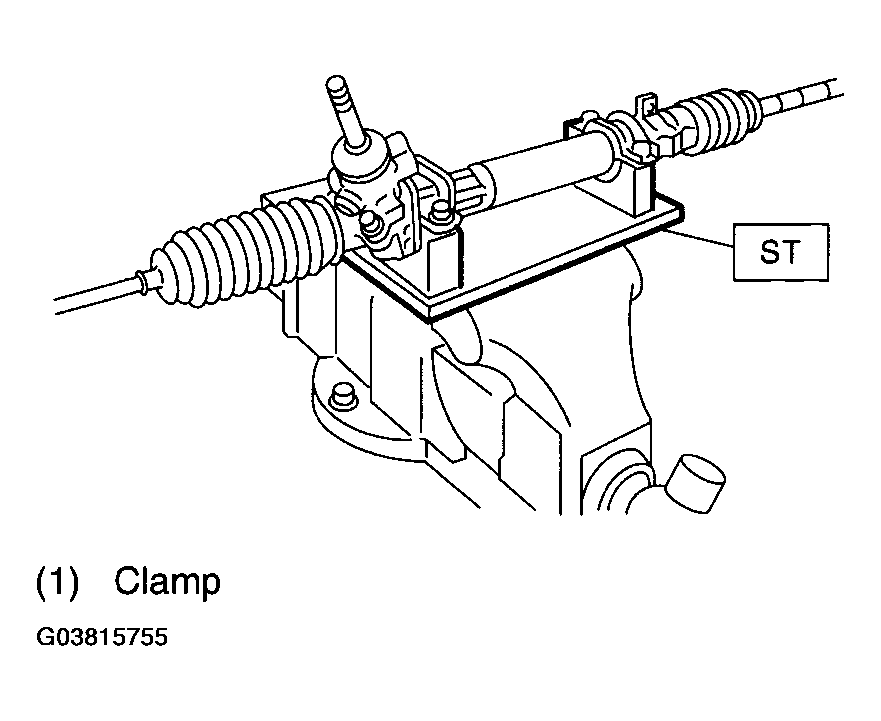

Fig 1: Securing Gearbox Using Special Tool
Courtesy of SUBARU OF AMERICA, INC.
Remove the tie-rod end and lock nut from gearbox.
Remove the clip on outside of boot using pliers, and then slide the boot to tie-rod end side.

Fig 2: Removing Clip On Outside Of Boot Using Pliers
Courtesy of SUBARU OF AMERICA, INC.

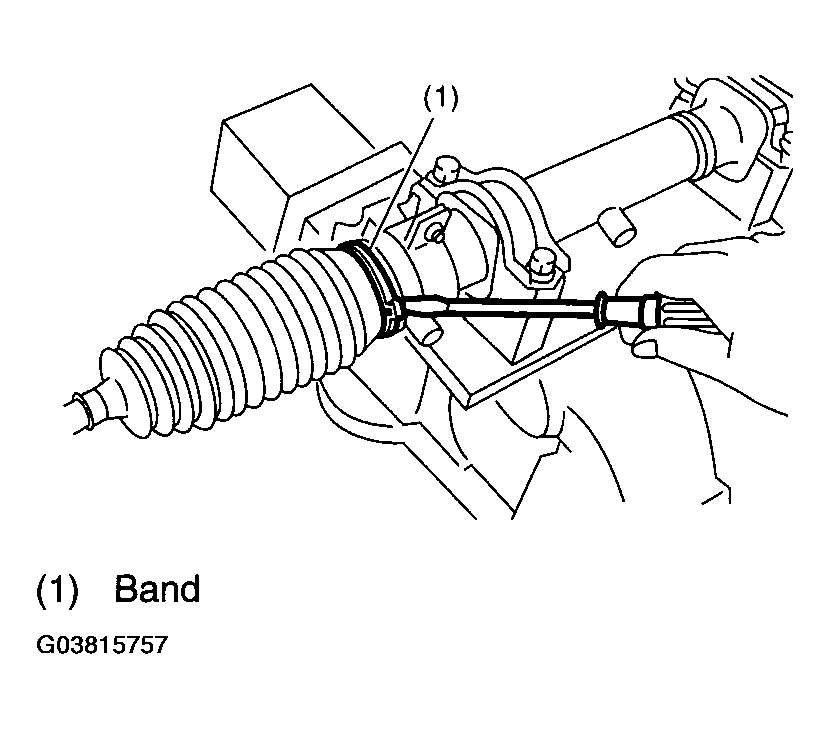

Using flat tip screwdriver, remove the band from boot.
NOTE: Check the boot for crack, damage or deterioration. Replace the boot with a new one if necessary.

Fig 3: Removing Band From Boot
Courtesy of SUBARU OF AMERICA, INC.
Using the ST, loosen lock nut.
ST 926230000 SPANNER

Fig 4: Loosening Lock Nut Using Special Tool
Courtesy of SUBARU OF AMERICA, INC.
Tighten the adjusting screw until it no longer tightens.

Fig 5: Tightening Adjusting Screw
Courtesy of SUBARU OF AMERICA, INC.
Using a wrench (32 mm (1.26 in) width across flats) or adjustable wrench with cinching boot, remove the tie-rod.

Fig 6: Removing Tie-Rod
Courtesy of SUBARU OF AMERICA, INC.
Loosen the adjusting screw, and then remove the spring and sleeve.
Disconnect the pipes A and B from steering body and control valve housing.

Fig 7: Disconnecting Pipes A And B From Steering Body And Control Valve Housing
Courtesy of SUBARU OF AMERICA, INC.
Clean the dirt of input shaft. Remove the dust cover taking care not to scratch the housing or input shaft and allow foreign matter to enter gear box interior.

Fig 8: Removing Dust Cover
Courtesy of SUBARU OF AMERICA, INC.
Align the ST pin to plug hole to install. Rotate the ST counterclockwise to remove plug.
ST 34199AE090 PLUG WRENCH

Fig 9: Identifying Plug Using Special Tool
Courtesy of SUBARU OF AMERICA, INC.

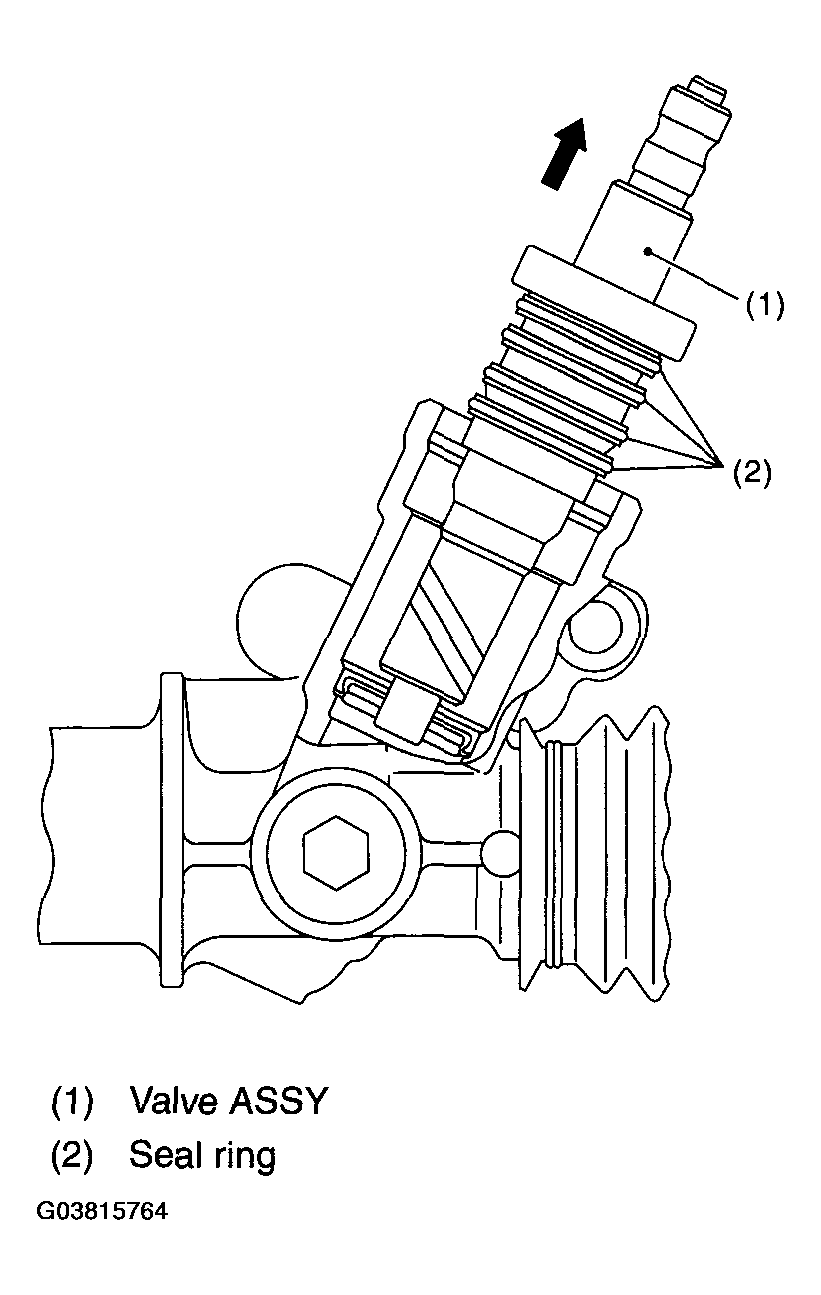

Remove the valve assembly taking care not to scratch seal ring and valve housing inner surface.

Fig 10: Identifying Valve Assembly
Courtesy of SUBARU OF AMERICA, INC.
Remove the holder using a wrench (36 mm (1.42 in) width across flats) or adjustable wrench.

Fig 11: Removing Holder Using Wrench
Courtesy of SUBARU OF AMERICA, INC.

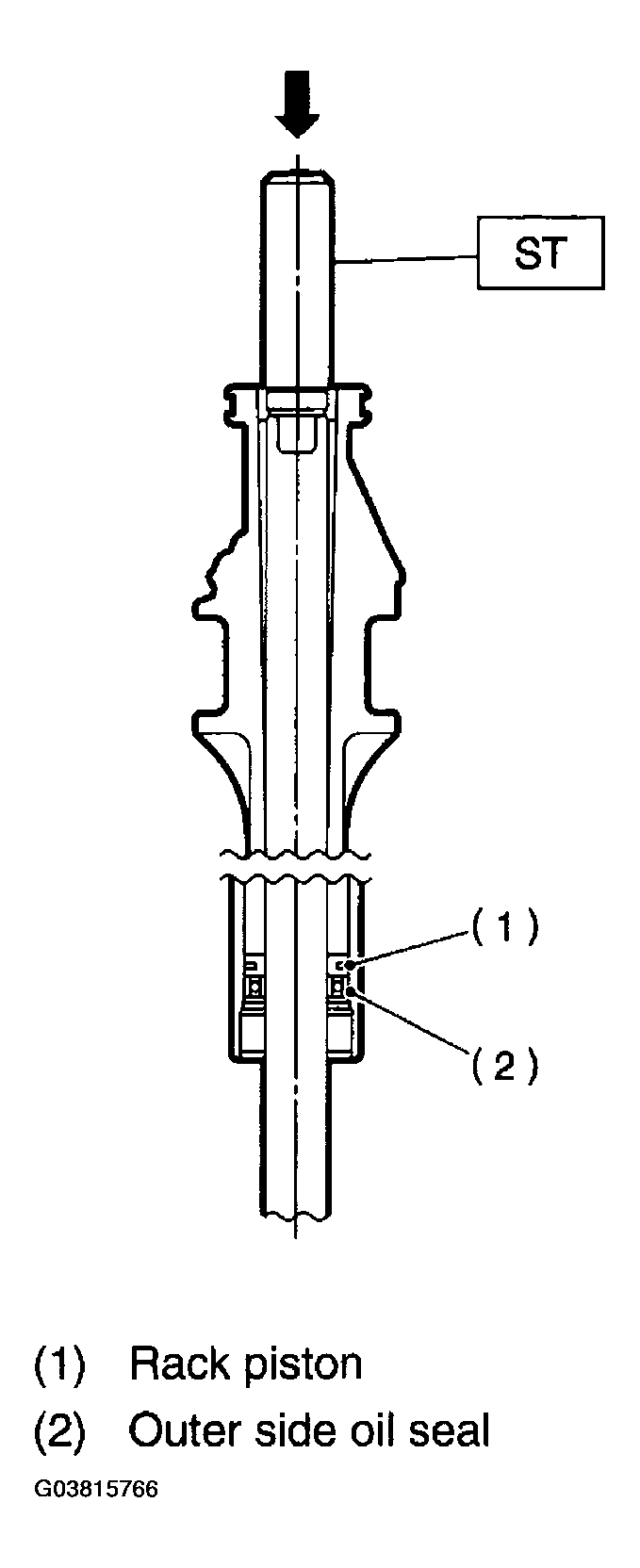

Install the ST on valve side of rack and press outer side oil seal out taking care not to contact rack with steering body inner surface.
ST 34199FE000 INSTALLER & REMOVER

NOTE: Block the pipe connection of steering body to prevent fluid from flowing out.

Fig 12: Identifying Outer Side Oil Seal Using Special Tools
Courtesy of SUBARU OF AMERICA, INC.

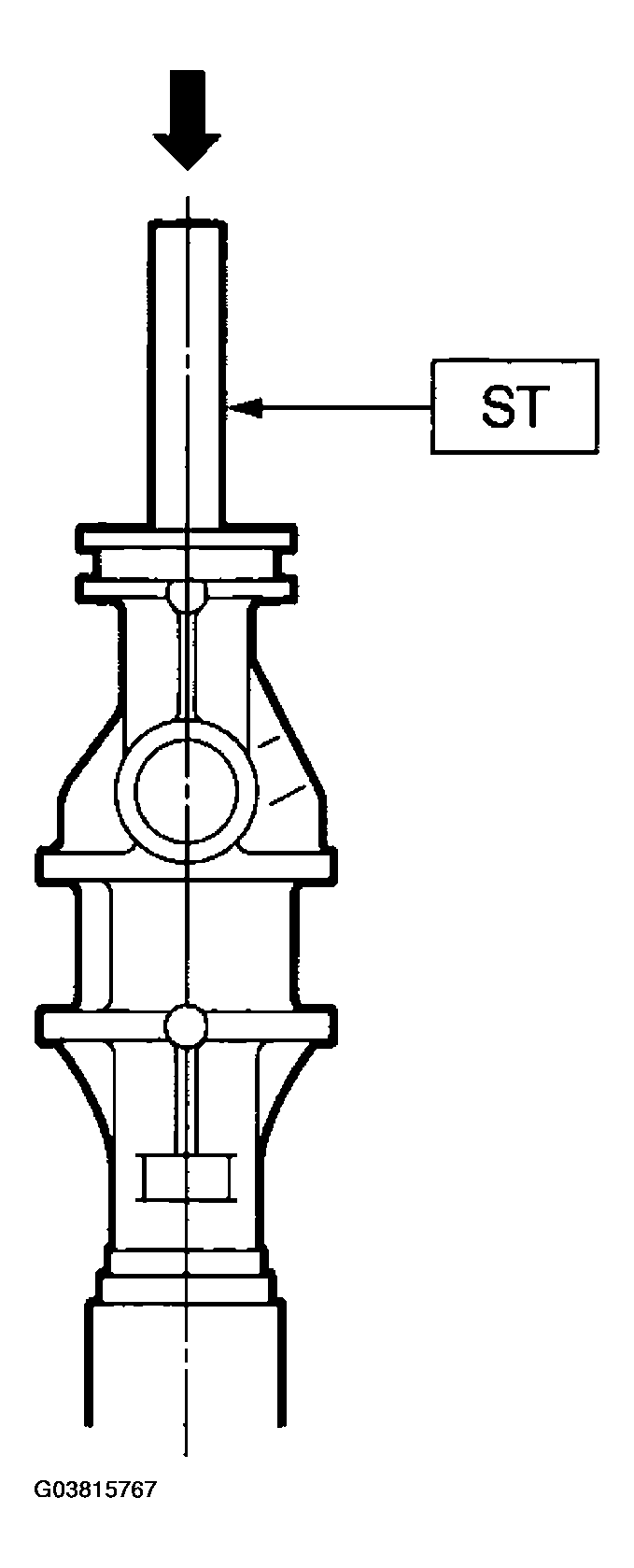

Insert the ST from valve side and press backup ring and oil seal out.
ST 34199FE010 REMOVER

Fig 13: Identifying Backup Ring And Oil Seal Out Using Special Tool
Courtesy of SUBARU OF AMERICA, INC.

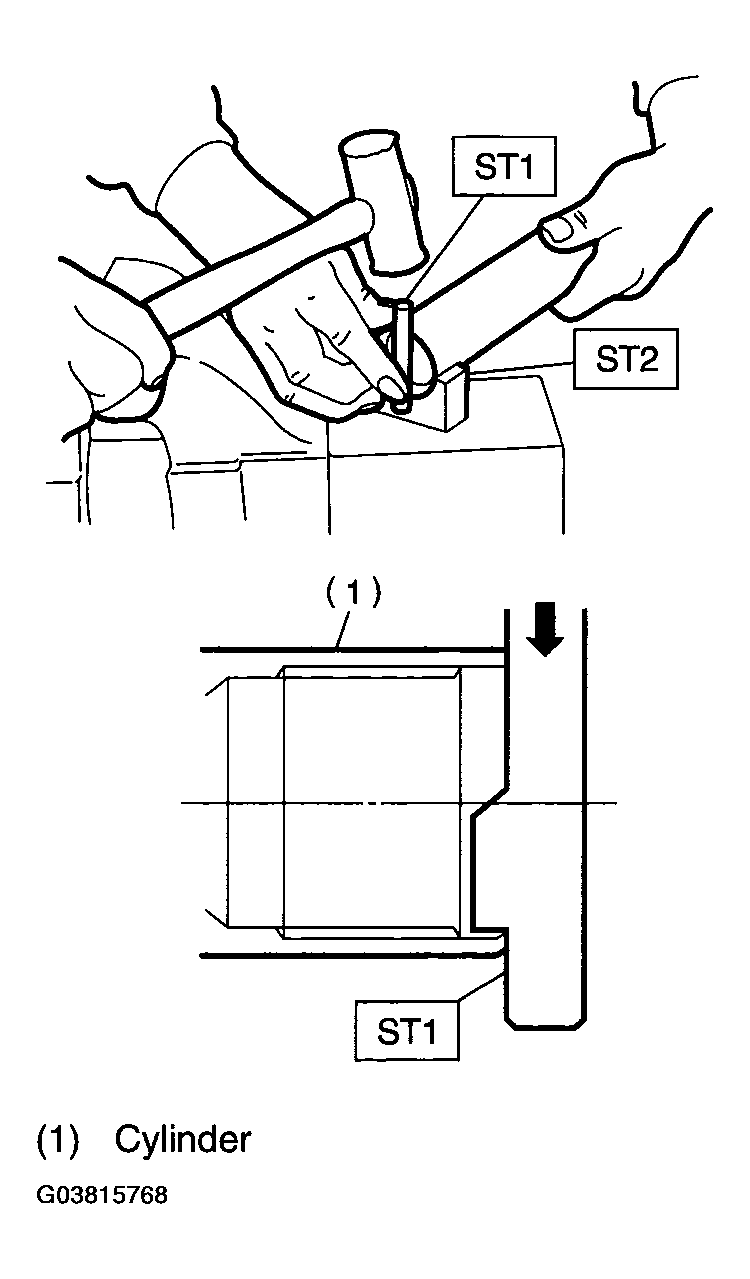

Using the ST1 and ST2, repair the cylinder's clinched sections.
ST1 34099FA080 PUNCH

ST2 34199FE020 BASE

Fig 14: Repairing Cylinder's Clinched Sections Using Special Tools
Courtesy of SUBARU OF AMERICA, INC.
If the cylinder edge is deformed in a convex shape, repair using an oil stone.

Fig 15: Identifying Cylinder Edge Convex Shape
Courtesy of SUBARU OF AMERICA, INC.
Remove the oil seal using ST and press from plug.
ST 34199AE100 PLUG OIL SEAL REMOVER

NOTE: Do not apply force on the plug edge surface.

Fig 16: Identifying Oil Seal Using Special Tool
Courtesy of SUBARU OF AMERICA, INC.
Set the ST on drawing dimension.
ST 34199AE120 GEARBOX OIL SEAL REMOVER

Fig 17: Identifying Special Tool On Drawing Dimension
Courtesy of SUBARU OF AMERICA, INC.

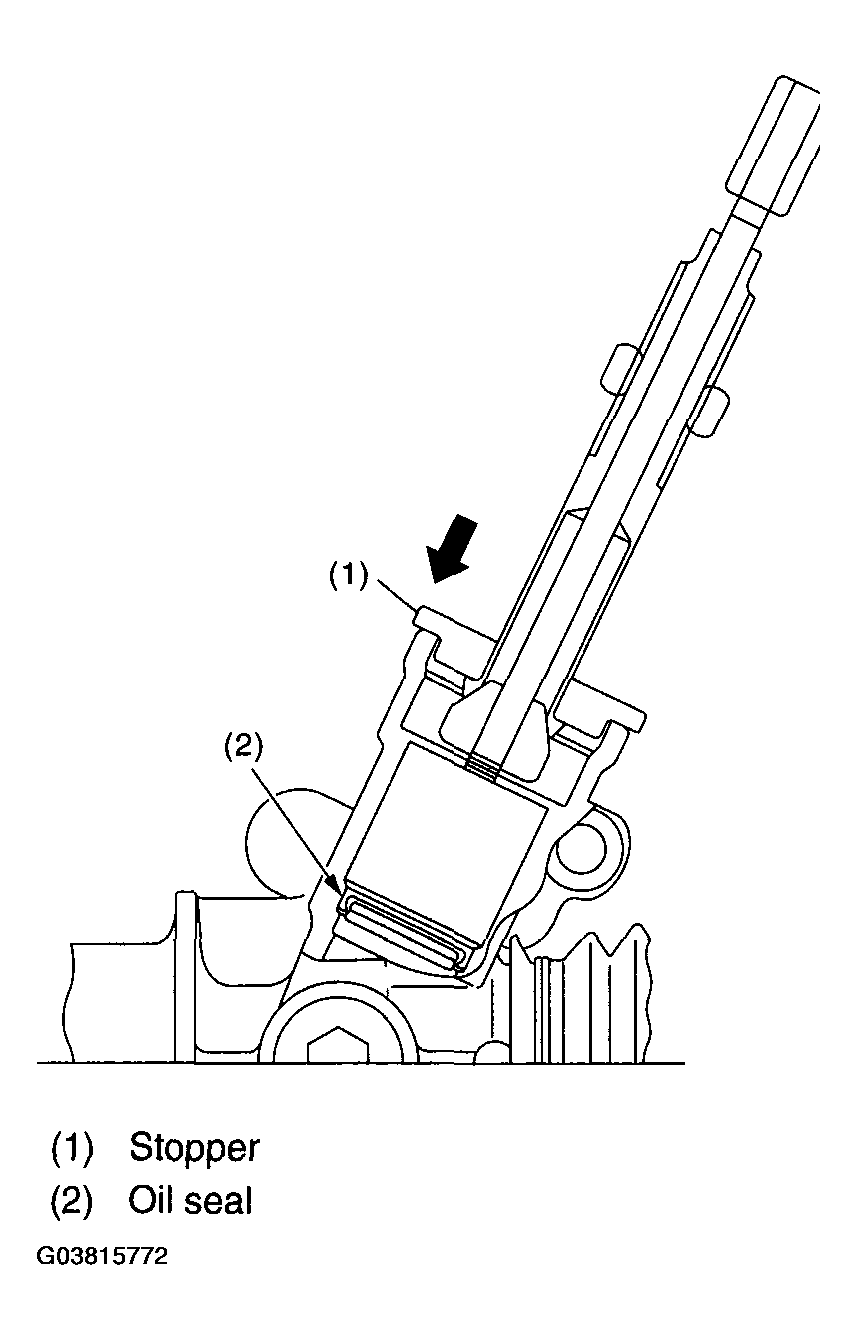

Set the stopper to gear box, and then insert the tip of ST to gear box.

Fig 18: Identifying Stopper To Gear Box
Courtesy of SUBARU OF AMERICA, INC.

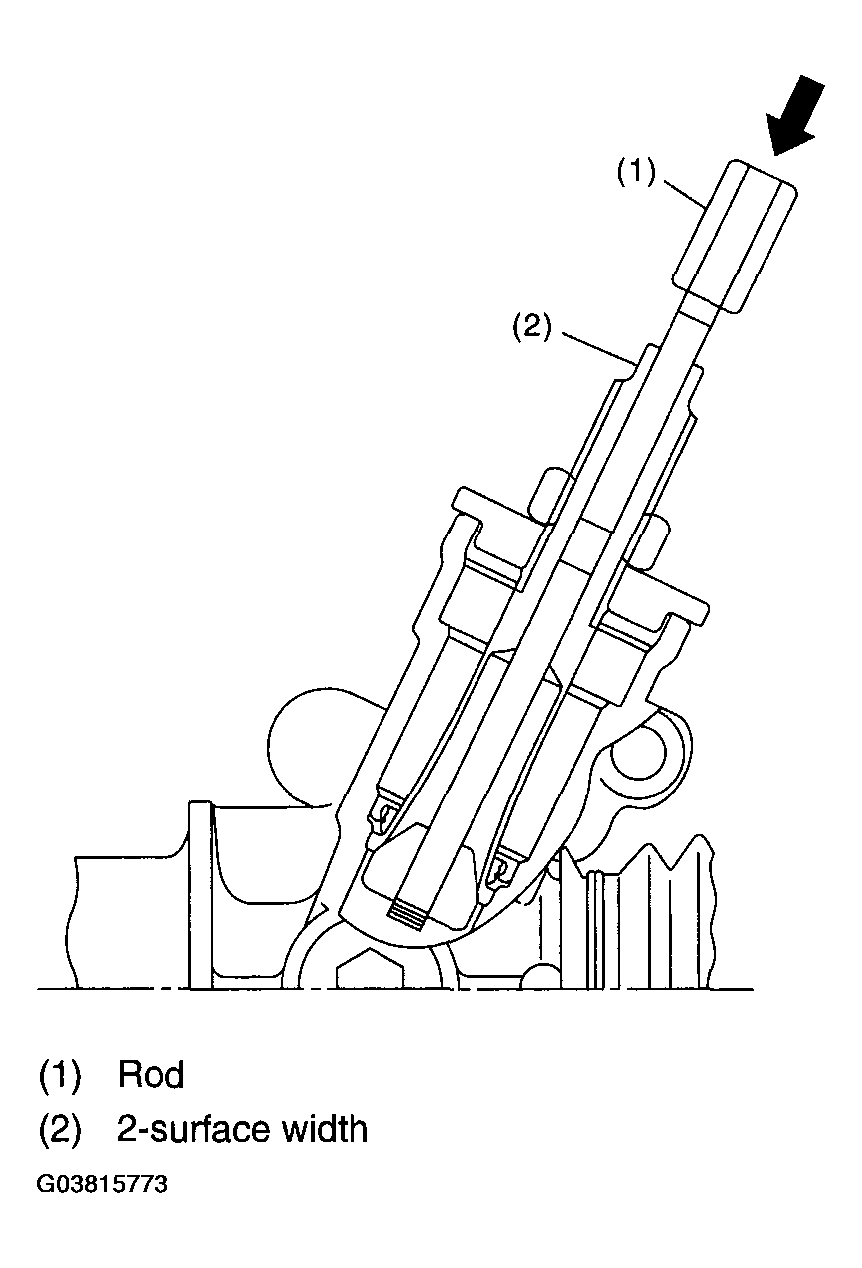

By fixing the 2-surface width, press in by rotating the rod and attach to oil seal.

Fig 19: Identifying 2-Surface Width
Courtesy of SUBARU OF AMERICA, INC.

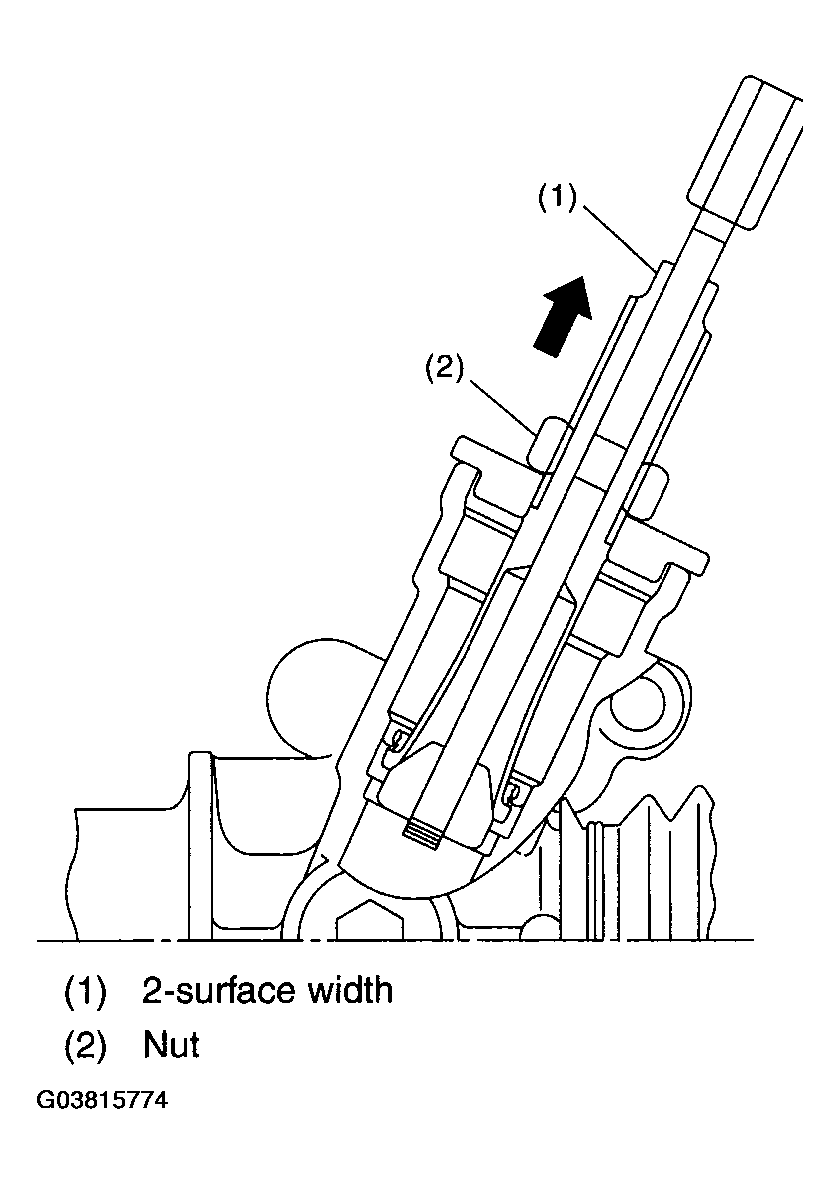

While fixing the 2-surface width, pull out the oil seal by rotating nut.
CAUTION: Take care not to scratch the gear box inner surface.

Fig 20: Identifying Oil Seal By Rotating Nut
Courtesy of SUBARU OF AMERICA, INC.
