Universal Joint: Installation

Align the cutout at serrated section of the column shaft and yoke, and then insert the universal joint into column shaft.

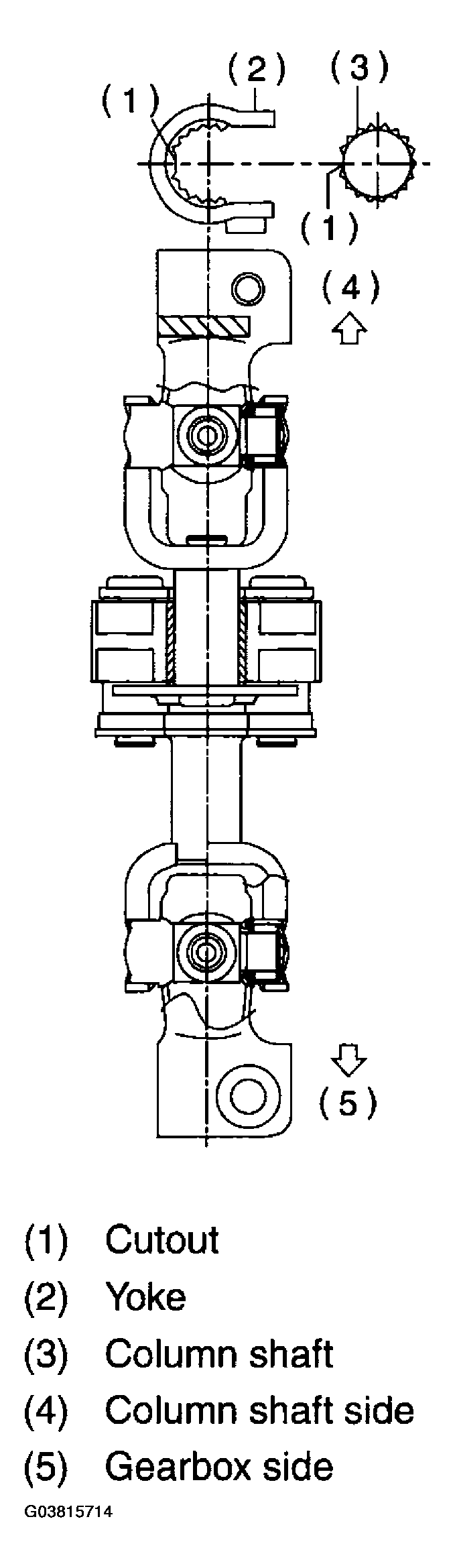

Fig 1: Identifying Cutout Serrated Section Of Column Shaft And Yoke
Courtesy of SUBARU OF AMERICA, INC.
Align the matching marks, and then insert the universal joint to serrated section of gear box assembly.
Tighten the bolt.
Tightening torque:

24 N.m (2.4 kgf-m, 17.4 ft-lb)

CAUTION: Excessively large tightening torque of the universal joint bolts may lead to heavy steering wheel operation.

Standard clearance between gearbox to DOJ: Over 14 mm (0.55 in)
Align the center of roll connector. < Ref. to ADJUSTMENT , Roll Connector. >
Install the steering wheel and airbag module. < Ref. to INSTALLATION , Steering Wheel. >
WARNING: Always refer to "Airbag System" before performing airbag module service. < Ref. to CAUTION , General Description. >
