Body Sealing: Specifications

Used material: THREE BOND 4104 (004403063)

Common for wagon and sedan model

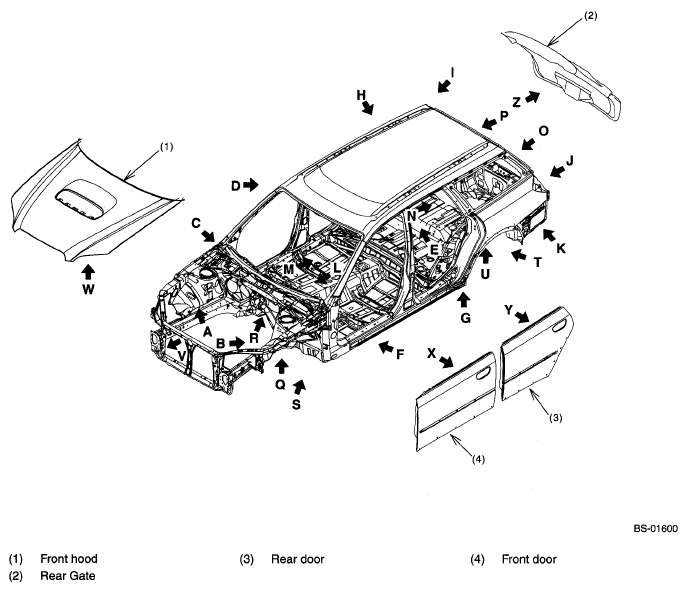

Fig 1: Locating Body Sealing Points - Wagon And Sedan Model (1 Of 5)

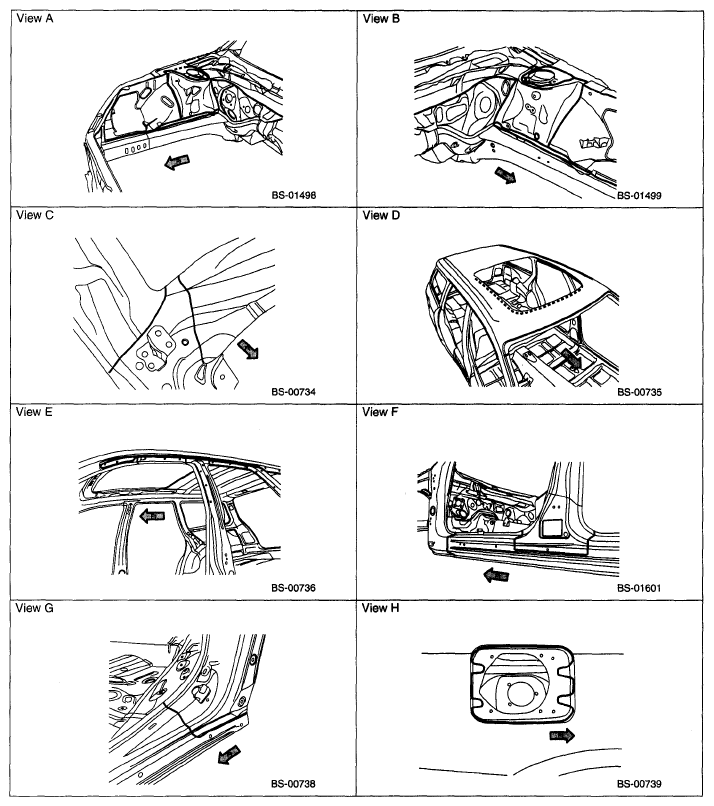

Fig 2: Locating Body Sealing Points - Wagon And Sedan Model (2 Of 5)

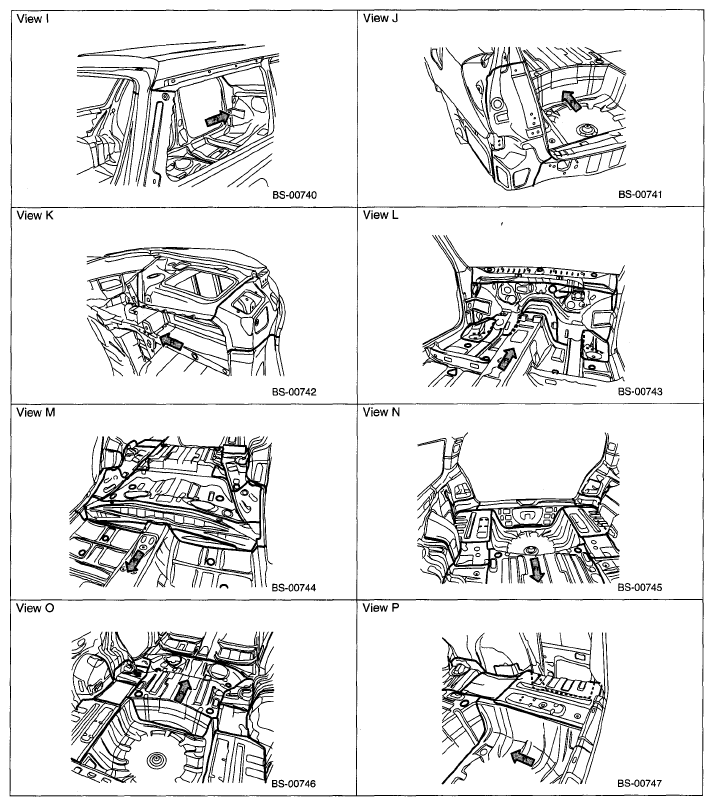

Fig 3: Locating Body Sealing Points - Wagon And Sedan Model (3 Of 5)

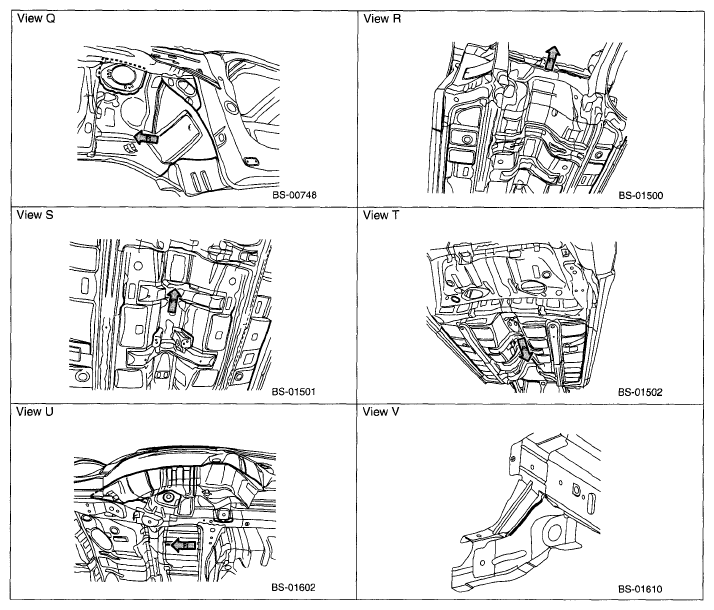

Fig 4: Locating Body Sealing Points - Wagon And Sedan Model (4 Of 5)

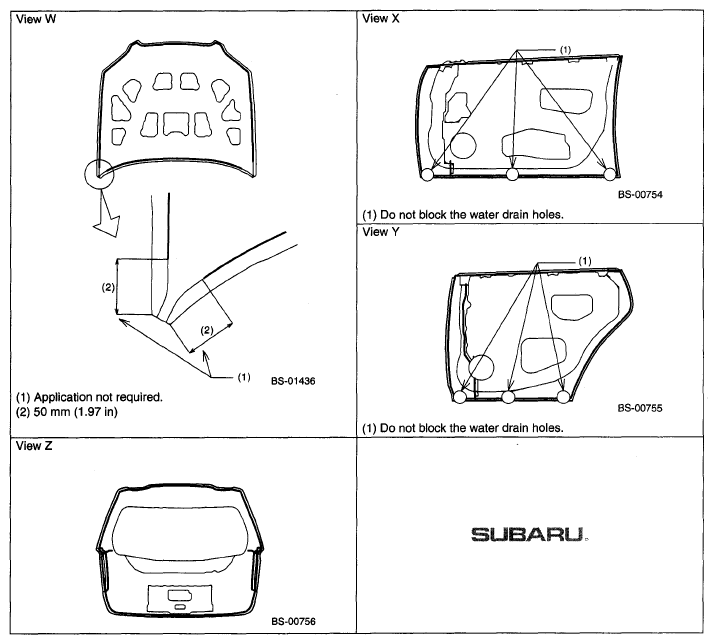

Fig 5: Locating Body Sealing Points - Wagon And Sedan Model (5 Of 5)

CAUTION: Sealer already has been applied to hood, door, and rear gate in replacement condition.

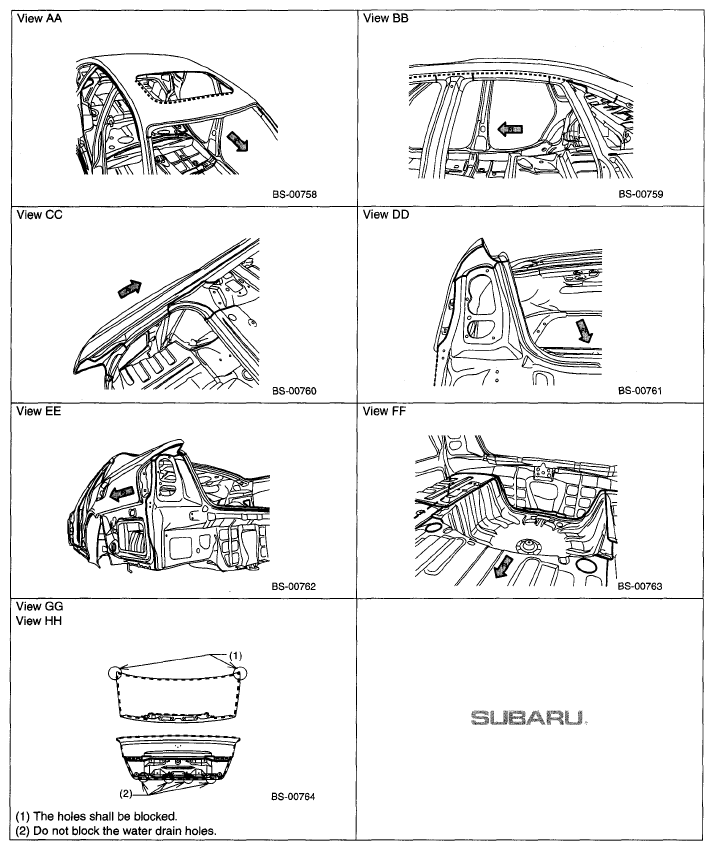

Fig 7: Locating Body Sealing Points - Sedan Model (2 Of 2)

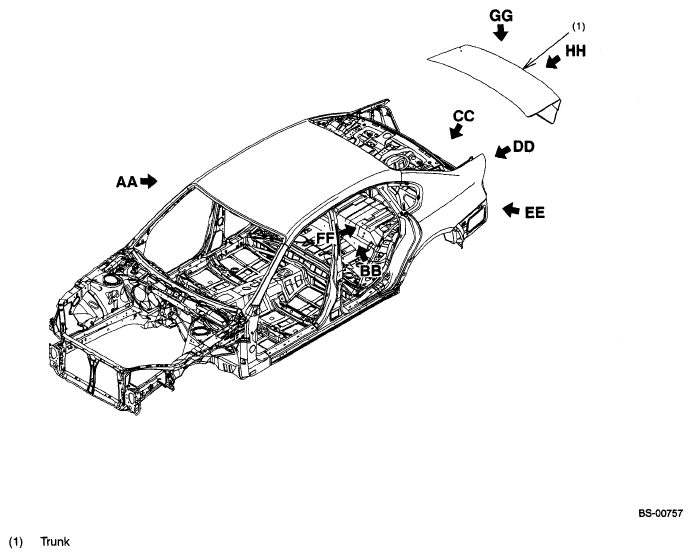

CAUTION: Sealer already has been applied to the trunk in replacement condition.
