Subaru
›
2007
›
Outback R L.L. Bean Edition, 4D Sedan
›
Repair and Diagnosis
›
Engine Performance
›
Engine Control Systems
›
Fuel Injection System (H6DO)
›
General Description
›
Components With Torque Specifications
›
Fuel Line
Fuel Line

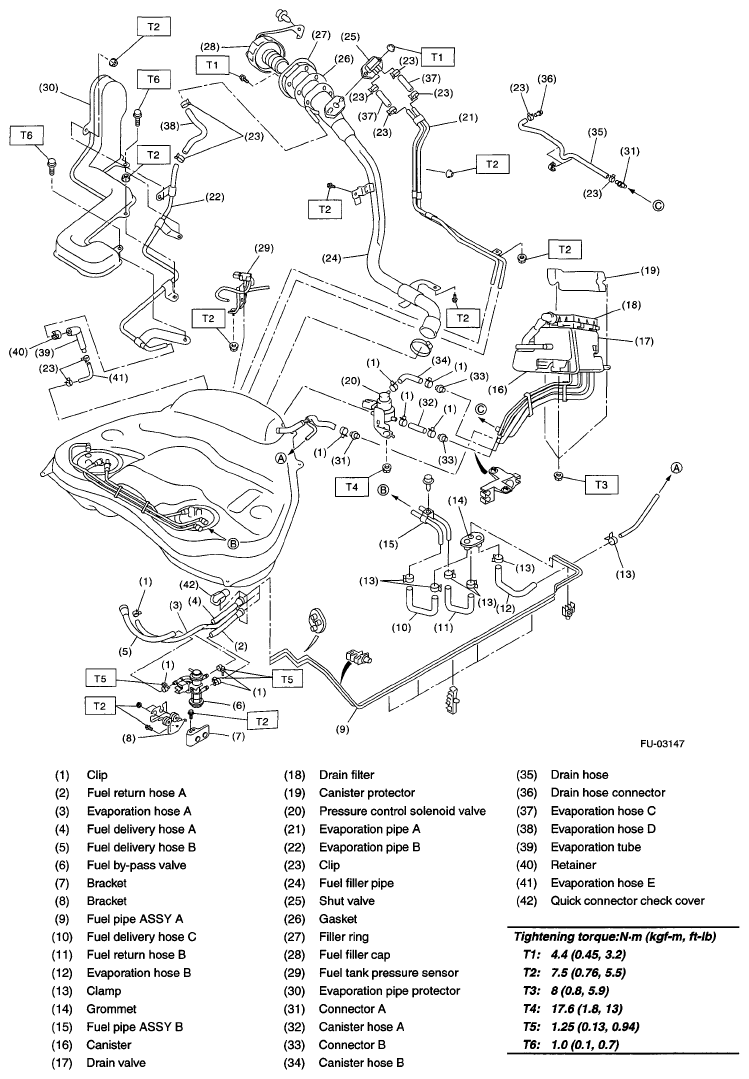

Fig 1: Exploded View Of Fuel Line With Torque Specification
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
