Control Module I/O Signal: Wiring Diagram

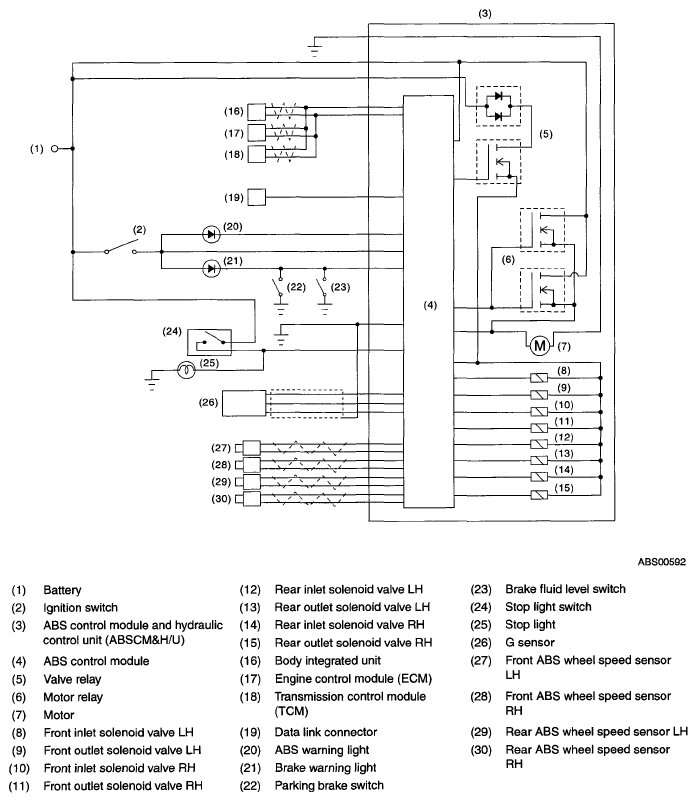

Fig 1: ABS Control Module - Wiring Diagram
G05343393Courtesy of SUBARU OF AMERICA, INC.
