General Description
›
Components With Torque Specifications
›
Abs Control Module And Hydraulic Control Unit (ABSCM&H/U)
Abs Control Module And Hydraulic Control Unit (ABSCM&H/U)

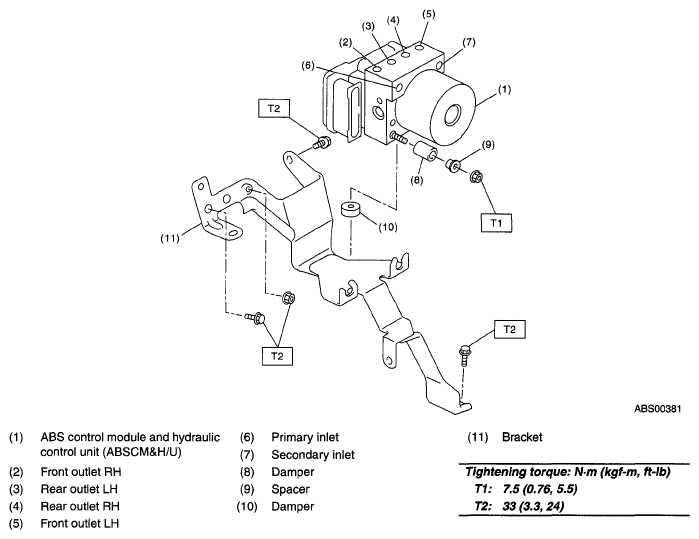

Fig 1: ABS Control Module And Hydraulic Control Unit (ABSCM&H/U) Replacement Components With Torque Specifications
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
