L Model

Replace the belts if cracks, fraying or wear are found.
Check that the V-belt automatic belt tensioner indicator (A) is within the range (D).

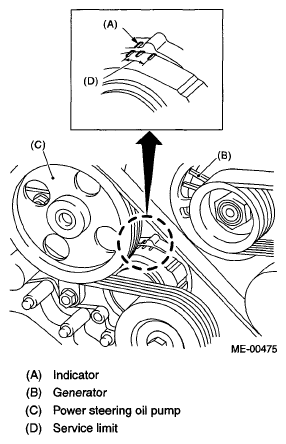

Fig 1: Checking V-Belt Automatic Belt Tensioner
Courtesy of SUBARU OF AMERICA, INC.
