Mechanism & Function -- Automatic Transmission -- 4AT
›
Transmission Control Module (TCM)
›
Schematic Diagram
Schematic Diagram

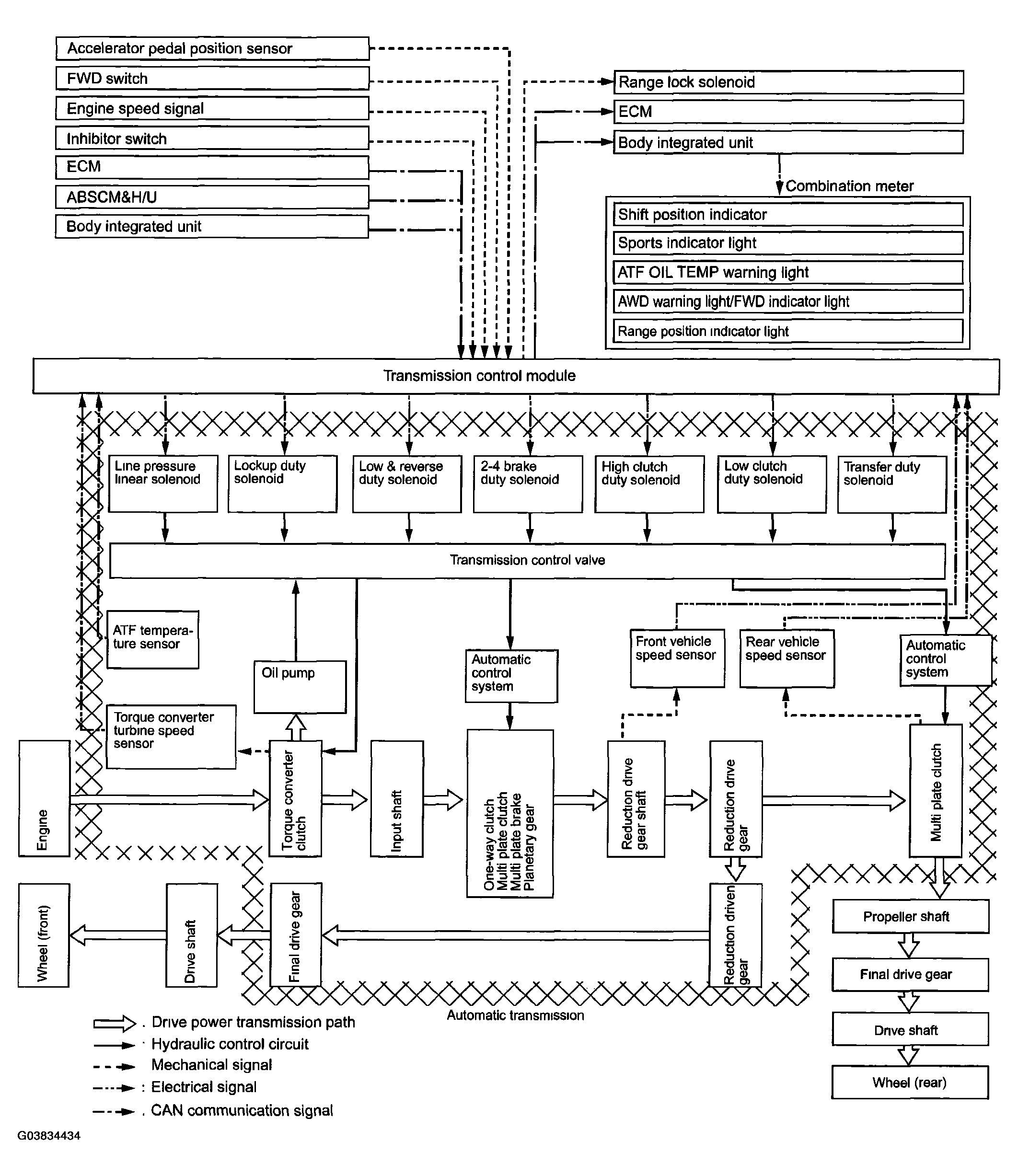

Fig 1: Schematic Diagram Of Transmission Control Module (TCM)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
